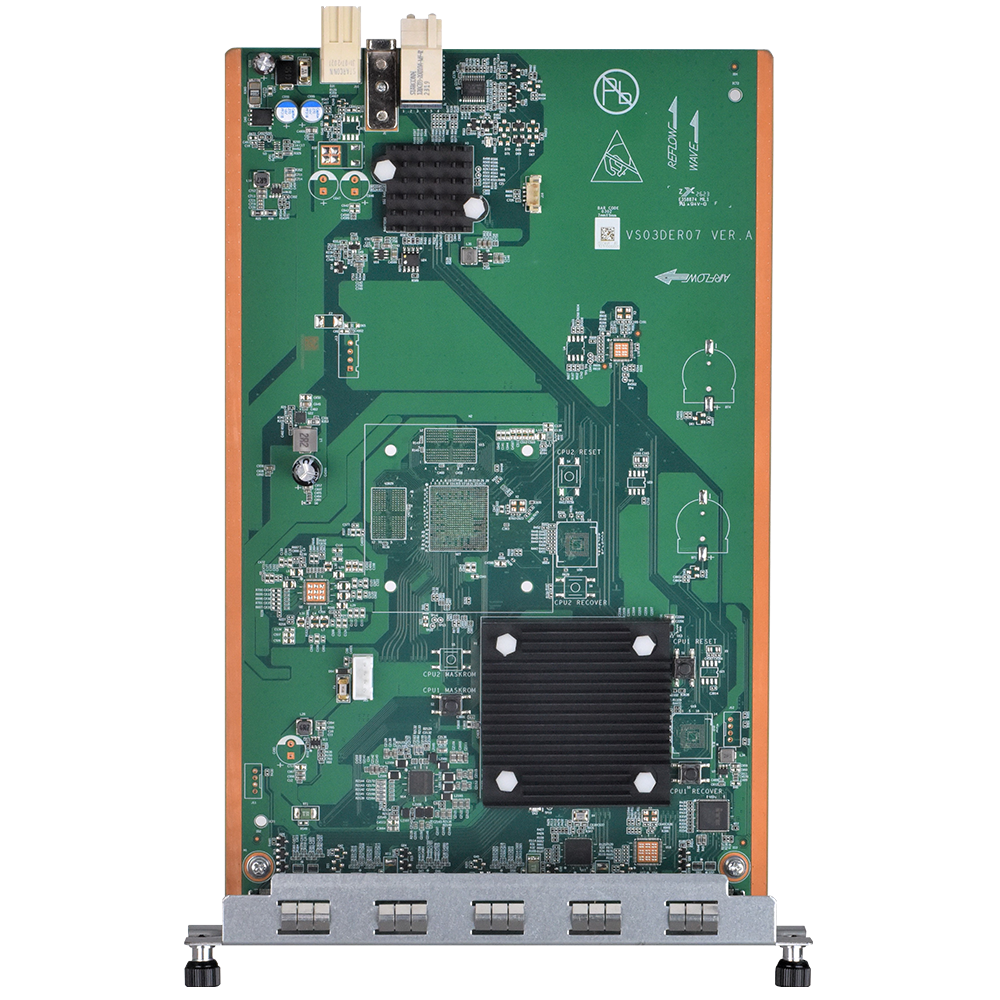

Uniview FB-HD04-B-NB 4-ch HDMI Output Decoding Card
Uniview FB-HD04-B-NB 4-ch HDMI Output Decoding Card
Model: FB-HD04-B-NB
Regular price
$1,658.80
Sale price
$1,658.80
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Couldn't load pickup availability
• Support 4-ch HDMI
• HDMI at up to 4K (3840x2160) resolution
• All HDMI independent outputs provided
• Support H.265/H.264 video formats
• Up to 16 Megapixels resolution recording
| FB-HD04-B-NB | ||||||||
| Video/Audio Output | ||||||||
| HDMI Output | HDMI1 & HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI3 & HDMI4: 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|||||||
| Decoding | ||||||||
| Decoding Capability | HDMI1 & HDMI2 & HDMI3 & HDMI4: 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 64x 720P@30 |
|||||||
| Multi-window | 1/4/5/6/7/8/9/16 | |||||||
| Working Environment | ||||||||
| Working Temperature | -10°C ~ + 55°C (14°F to +131°F) | |||||||
| Working Humidity | 10% ~ 90% (non-condensing) | |||||||
| Weight | ||||||||
| Weight | <1 Kg (2.2 lb) | |||||||
