EM411-RDL-915M - PN: EA
EM411-RDL-915M - PN: EA

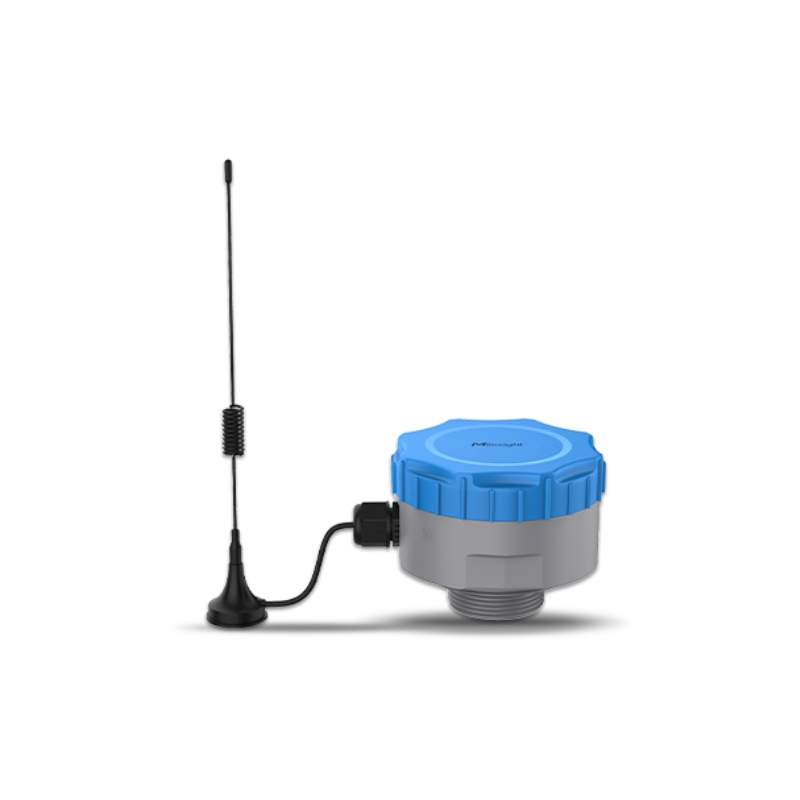

Model: EM411-RDL-915M - PN: EA
Available in stock
Open here
1 * 19000mAh ER34615 Li-SOCL2 Battery
Battery Life: Around 7 Years (15-min Collection
Interval+1440-report Interval, 25°C)
Non- invasive Liquid Level Monitoring
Support External Antenna or Internal Antenna Versions
Built-in 3-axis Accelerometer Sensor to Monitor Device
Tilt Status
Distance Threshold Alarm / Distance Change Alarm /
Blind Zone Alarm / Radar-echo Curve / One-click
Diagnostic
Applications: Sewage well Mode / Rainwater well Mode
/ General Mode
Store up to 4,000 Historical Records Locally and
Support Retransmission
Support cumulative number report function for power
saving (For Cellular Version)
NFC and Bluetooth Enabled
Material: PVDF
Resolution: 1mm
Couldn't load pickup availability
- 60 GHz millimeter-wave radar distance sensing
- 0.3-12 m detection range
- 8° narrow beam
- IP68 enclosure
- Up to ±2 mm accuracy under ideal surface conditions
- NFC and Bluetooth configuration
- ATEX Zone 0 certification on EM411-RDL
| Model | EM411-RDL-915M - PN: EA |
|---|---|
| Measurement | |
| Technology | 60 GHz Millimeter Wave Radar |
| Target | Liquids or smooth-surface solids |
| Detection Angle | 8° |
| Distance | 0.3-12 m |
| Accuracy | Up to ±2 mm / ±5 mm depending on surface |
| Resolution | 1 mm |
| Physical Characteristics | |
| Power Supply | 1 × 19000 mAh ER34615 Li-SOCl₂ battery |
| Ingress Protection | IP68 |
