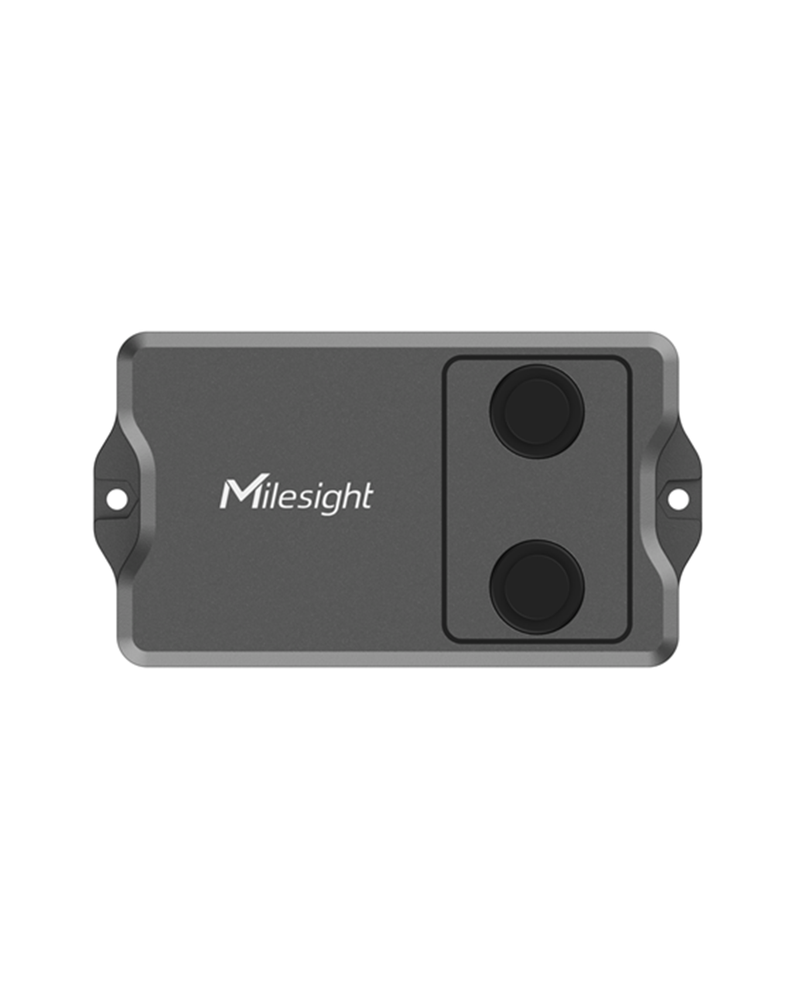

EM400-MUD-N03GL - PN: B045-2
EM400-MUD-N03GL - PN: B045-2
Model: EM400-MUD-N03GL - PN: B045-2
Available in stock
2 * 9000mAh ER26500 Li-SOCL2 Batteries
Battery Life:
TCP / UDP: Around 10 Years
MQTT / AWS: Around 5 Years
(4 Times Report per Day, per Report Includes 12
Packages with 30-min Collection Interval, 25°C)
3-450 cm Wide Detection Range with Small Blind Zone
Equipped with NTC Temperature Sensor for the
Detection and Alarm of Trash Burning
Equipped with Two Pre-set Modes for Different
Applications: Standard Mode / Bin Mode
Equipped with GNSS Positioning for Tracking
Support Cumulative Number Report Function for Power
Saving
NFC Enabled
Material: PC + ABS
Couldn't load pickup availability
- Ultrasonic distance sensing
- Standard, bin and parking modes
- 3-450 cm detection range
- Tilt and temperature monitoring
- LoRaWAN®, NB-IoT and Cat M versions
- IP67 enclosure
| Model | EM400-MUD-N03GL - PN: B045-2 |
|---|---|
| Measurement | |
| Distance Range | 3-450 cm |
| Accuracy | ±(1 + 0.3% × S) cm |
| Resolution | 1 mm |
| Beam Angle | 60° |
| Position Status | Normal/Tilt |
| Temperature Range | -40°C to 125°C |
| Environmental | |
| Ingress Protection | IP67 |
