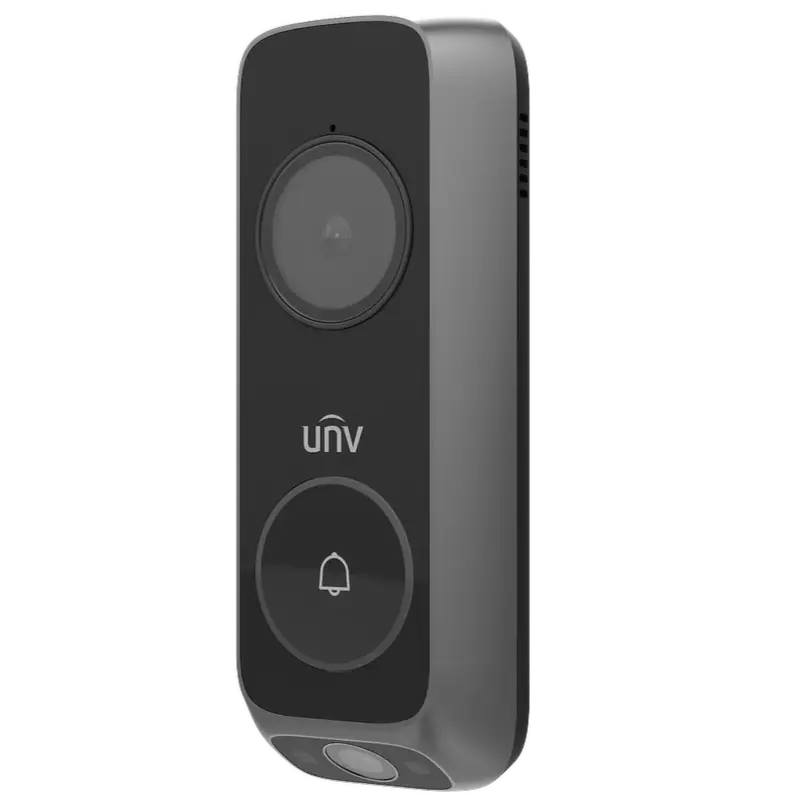

UNV ED-525B-WB-GY dual-lens video doorbell
UNV ED-525B-WB-GY dual-lens video doorbell
Model: ED-525B-WB-GY
Regular price
$415.00
Sale price
$415.00
Regular price
Available in stock
Couldn't load pickup availability
- Supports mechanical chime and wireless chime.
- Supports connection to a Uniview NVR for live view, playback, and alarm search.
- Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to UNV-Link and NVR.
- 3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view.
- Supports noise suppression.
- Supports true HDR and WDR, capturing clearer images in backlit scenes.
- Supports calling the UNV-Link app, allows you to answer visitor calls anytime, anywhere using the app.
- Supports Sub-1GHz wireless chime.
- Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6, faster video streaming and real-time monitoring.
- Supports network connection through Bluetooth, quick and simple.
- Built-in 8 GB eMMC storage (no storage costs)!
| Model | ED-525B-WB |
| Camera | |
| Resolution — main camera | 3MP |
| Resolution — sub camera | 2MP |
| FOV — main camera | Horizontal: 116° Vertical: 82.5° Diagonal: 131° |
| FOV — sub camera | Horizontal: 96.8° Vertical: 52.6° Diagonal: 109.9° |
| Power kit | |
| power kit | 240 mAH rechargeable lithium battery (for mechanical chime) |
| Charge temperature | 0 °C to 45 °C |
| Alarm Event | |
| Motion detection alarm | Support |
| UMD alarm | Supports human body detection alarm |
| Package detection alarm | Support |
| Wi-Fi | |
| Operating frequency band | 2.4 GHz and 5G Hz |
| BLE function | Compatible, integrated BLE, supports network connection via Bluetooth |
| Antenna type | Built-in omnidirectional antenna |
| WLAN | 802.11 b/g/n/ax |
| Encryption | WPA-PSK/WPA2-PSK/WPA3-personal |
| Bluetooth | Support, integrated in Wi-Fi chip |
| SUB-1G | |
| SUB-1G | Supported, for chime connection |
| Chimes | Max. 3 wireless chimes or 1 mechanical chime |
| Interface | |
| Reset button | 1 micro switch for both pairing and reset |
| Built-in Mic | Support |
| Built-in speaker | Support |
| Interface protocol | UNV private protocol |
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Illuminator | |
| Illumination scheme | IR + white light |
| Illumination distance | IR: 5 meters White light: 2 meters |
| Min. Illumination | 0.02 lux |
| General | |
| Dimensions | 55.8 mm × 156.5 mm × 27.9 mm |
| Weight | Net weight: 142g Gross weight: 295g |
| Power consumption | 10W |
| Installation method | With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts. |
| Button | One call button |
| Power source | Contact: AC 12 V to 24 V |
| Operating temperature | -30 °C to 60 °C |
| Ingress protection | IP65 |
| WDR | |
| WDR | Supports DWDR, main camera 80dB, sub camera 58dB |
| Video | |
| Video compression | H.265, H.264 |
| Audio | |
| Audio bit rate | 128 Kbps |
| Audio sampling rate | 8K |
| Audio compression | G711, MP3, PCM |
| Certification | |
| Certification | CB, CE LVD, CE EMC, CE RED, FCC SDOC, FCC ID |
