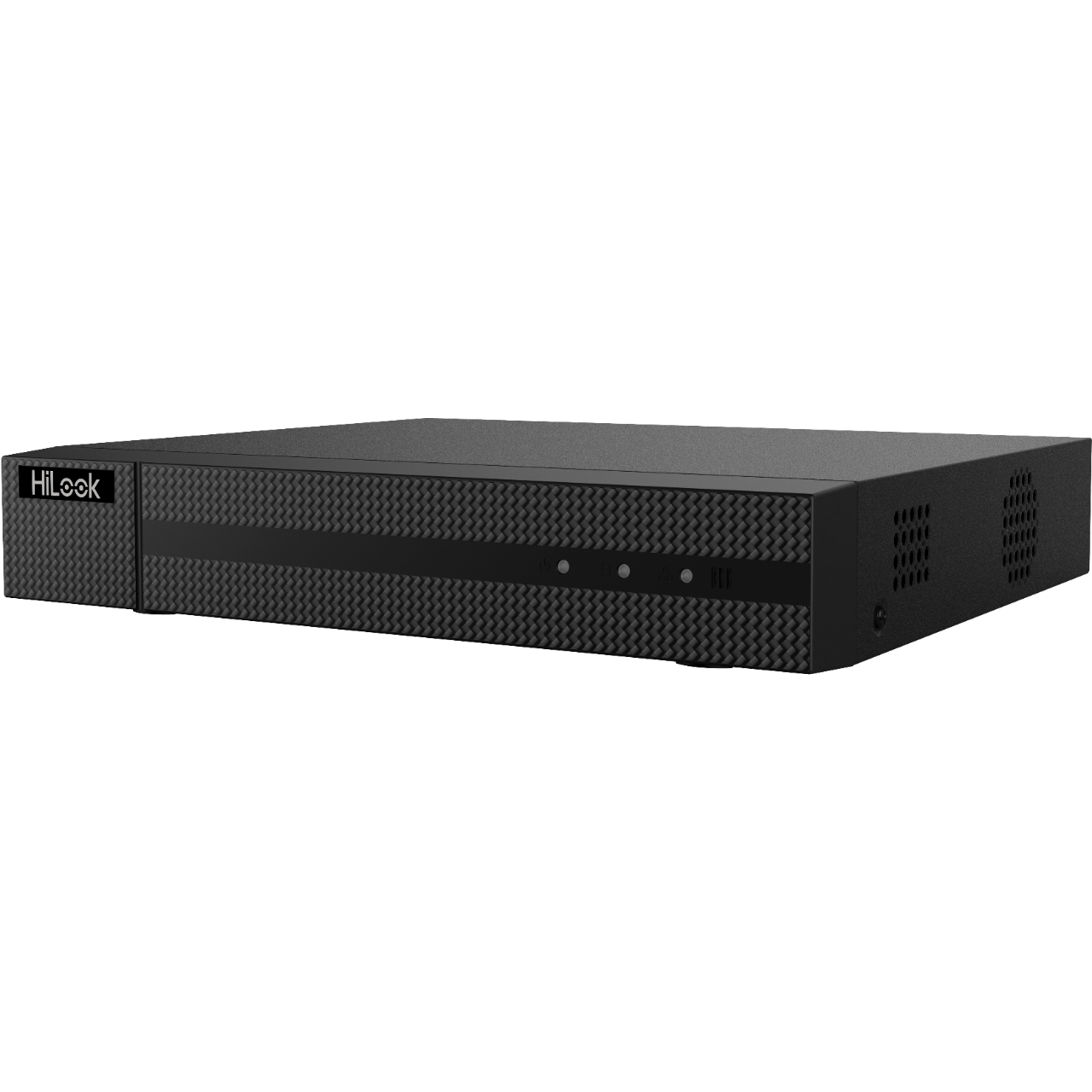

HiLook 4CH 4K/8MP 1x SATA Mini 1U DVR
HiLook 4CH 4K/8MP 1x SATA Mini 1U DVR
Model: DVR-204U-K1
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4CH (TVI/CVI/AHD/CVBS) up to 8MP6CH IP up to 8MP (3840x2160), 1x HDMI, 1x VGA, H.265+/H.265/H.264+/H.264, 1x8MP@8fps, Audio 1in/1out, 1x RJ45 10/100M, 1x SATA up to 10TB/ea, 2xUSB2.0
Couldn't load pickup availability
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Long distance transmission over UTP and coaxial cable
- H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
- Encoding abilty up to 8 MP @ 8 fps
- One HDD for continuous video recording
- Smart search for efficient playback.
- Perimeter Protection
- Line Crossing Detection/Intrusion Detection
2-ch
Enhanced VCA mode on: 4-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 8 MP Lite mode is not enabled:
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
When 8 MP Lite mode is enabled:
8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
When 8 MP Lite mode is not enabled:
8 MP@8 fps/5MP@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1 of DVR-204U-K1.
When 8 MP Lite mode enabled:
8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps
*: 8 MP Lite is only available for DVR-204U-K1.
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
2-ch (up to 6-ch)
Enhanced IP mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ohm), supporting coaxitron connection
- HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Input
1-ch, RCA (2.0 Vp-p, 1 KOhm)
4-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 K Ohm)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K Ohm) (using the audio input)
- Synchronous Playback4-ch
- Network
- Remote Connection32
- Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- USB InterfaceReal panel: 2 × USB 2.0
- Alarm In/OutN/A
- General
- Power Supply12 VDC, 1.5 A
- Consumption</= 10 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
- </= 1 kg (2.2 lb.)
