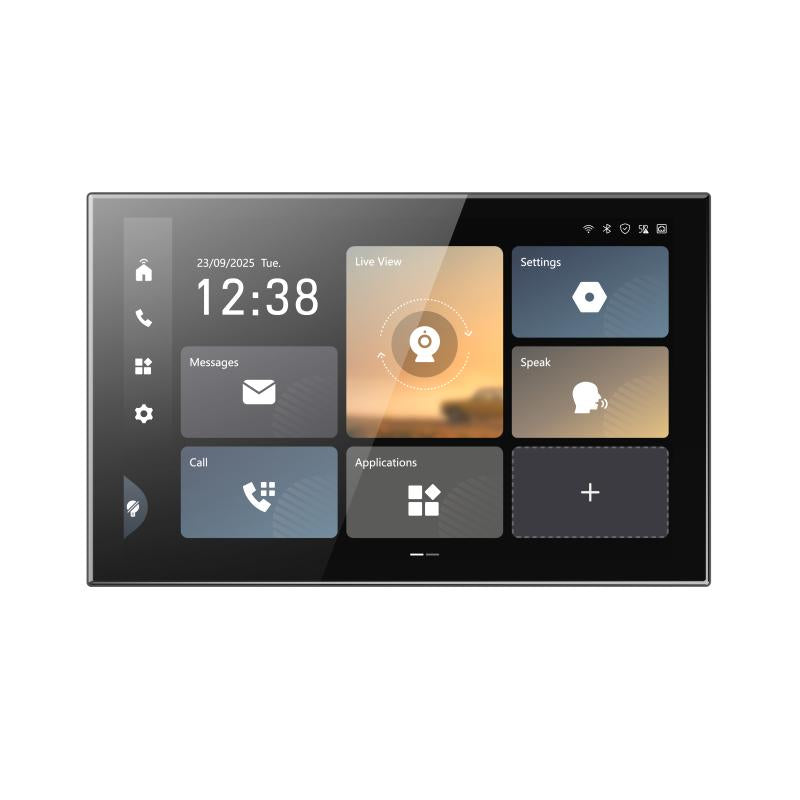

Hikvision Video Intercom Indoor Station DS-KH9570-WTE1/S
Hikvision Video Intercom Indoor Station DS-KH9570-WTE1/S
Model: DS-KH9570-WTE1/S
Regular price
$534.00
Sale price
$534.00
Regular price
Available in stock
Open here
Couldn't load pickup availability
| Model | DS-KH9570-WTE1/S |
|---|---|
| Product Category | Video Intercom Products |
| Product Type | IP Series |
| Product Series | Ultra Series |
| Offering | 9 Series Indoor Stations |
| System Parameters | |
| Operating System | Android 14 |
| ROM | 8 GB |
| RAM | 4 GB |
| Processor | 4-core embedded processor |
| Display | |
| Screen Size | 10.1 inch |
| Screen Type | Color IPS capacitive touchscreen |
| Display Resolution | 1920 × 1200 |
| Audio | |
| Microphones | 2 built-in omnidirectional microphones |
| Speakers | 2 built-in loudspeakers |
| Audio Compression | G.711A, G.711U, G.722.1, G.726, Opus, AAC, AAC-LD |
| Audio Bit Rate | 64 Kbps |
| Audio Quality | Noise reduction and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| Doorphones | 17 linked doorphones |
| Indoor Extensions | 15 linked indoor extensions |
| Network Cameras | 16 linked cameras |
| Messages | 200 captured images; 200 alarms; 200 unlock records; 200 tamper records |
| Network | |
| Wi-Fi | Wi-Fi 6, 2.4 GHz and 5 GHz |
| Bluetooth | Bluetooth Low Energy 5.0 |
| Protocols | IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP, SADP, ISAPI, ONVIF |
| Interfaces | |
| Alarm Inputs | 8 (reserved) |
| Ethernet | RJ45 10/100 Mbps self-adaptive |
| RS-485 | 1 half-duplex |
| TF Card | Up to 256 GB |
| Power Input | 12 VDC |
| Power Output | 12 VDC / 200 mA |
| Relay | 1 reserved, max. 30 VDC / 1 A |
| General | |
| Proximity Sensor | Up to 50 cm |
| Installation | Surface mounting |
| Weight | 545 g without package; 639 g with package |
| Operating Temperature | -10 to 50 °C |
| Operating Humidity | 10–90% non-condensing |
| Power Supply | 12 VDC, 2.5 A or IEEE 802.3at PoE |
| Power Consumption | ≤24 W |
| Operating Environment | Indoor |
| Dimensions (W × H × D) | 246.58 × 155.76 × 23.62 mm |
