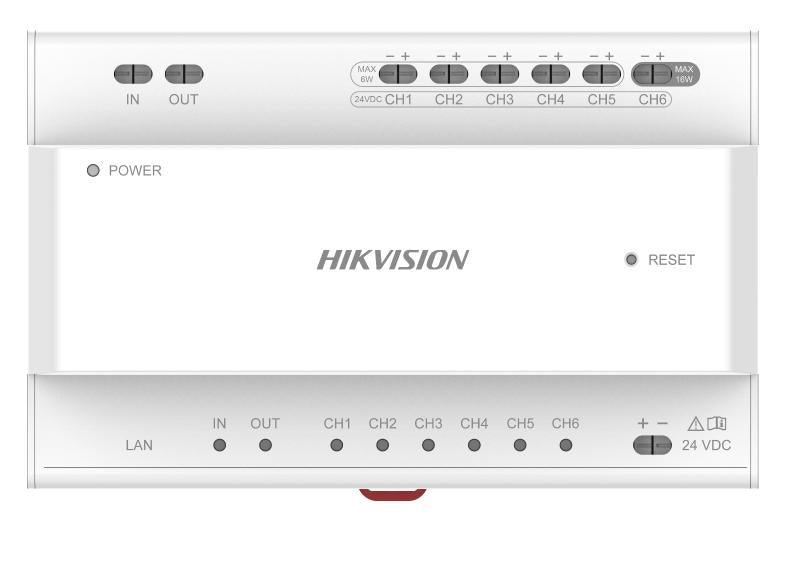

HIKVISION Two Wire Distributor
HIKVISION Two Wire Distributor
Model: DS-KAD706Y-P
Regular price
$368.62
Sale price
$368.62
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1 RJ-45 Interface, 6 Two-Wire Interface to connect DS-KD8003Y-IME2 or DS-KH6320Y-WTE2, 1 in interface to connect DS-KAD706Y & DS-KAD706Y-S, 1 out interface to connect DS-KAD706Y & DS-KAD706Y-S,, Reset button
Din rail mounting, 24VDC
Couldn't load pickup availability
- 2-wire IP distributor
- 6-port 2-wire cascade interfaces with device power supply
- 2 cascade interfaces for DS-KAD704Y, DS-KAD706Y & DS-KAD706Y-S series
- 8 interface indicators, 1 RJ-45 Interface, 1 Reset button
- Din rail mounting, 24 VDC input power supply
- Device interfaces
- Network interface1 RJ45
- Two-wire interface8(2 for casacading, 6 for devices)
- Signal indicator8
- Power indicator1
- Reset1
- General
- Power supply24 VDC
- Power consumptionCH1 to CH5?6 W, CH6?16 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
