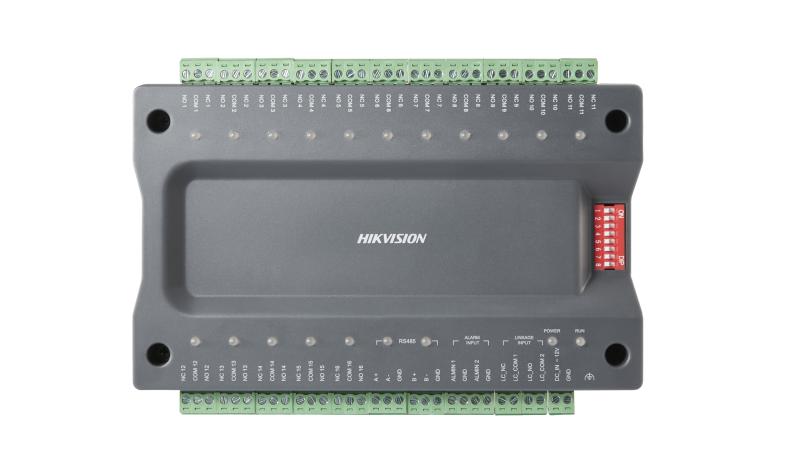

HIKVISION Elevator Sub-Controller
HIKVISION Elevator Sub-Controller
Model: DS-K2M0016A
Regular price
$1,472.30
Sale price
$1,472.30
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Distributed Elevator Controller, up to 16 floors’ permissions.
Uplink Communication: RS-485;
Input interface: Alarm Input×1, Tamper Alarm×1;
Output interface: Relay Output×16.
Couldn't load pickup availability
- Distributed elevator controller
- Connectable with up to 16 relays to control floor buttons in the elevator
- RS-485 communication with the master elevator controller
- DIP switch settings for device address and relay types
- Up to 8 distributed elevator controllers can be linked to the master elevator controller
- Control the elevator via the relay
Device Interface
- RS-485 Interface 2
- Alarm Input 2
- Relay Output 16
- Buzzer 1
General
- Working Temperature -40°F to 158°F
- Working Humidity 0% to 90% (No Condensation)
- Power Supply 12 VDC±15%
- Installation Guide Rail Installation
- Tamper-Proof 1
- Dimensions 167(L)mm*105(W)mm*30(H)mm
System Parameter
- Processor 32 bit
