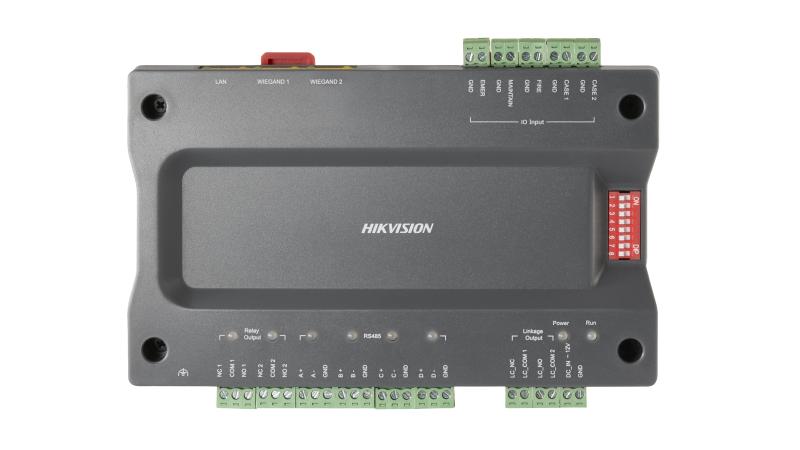

HIKVISION Elevator Master Controller
HIKVISION Elevator Master Controller
Model: DS-K2210
Regular price
$1,177.85
Sale price
$1,177.85
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Master Elevator Controller, Storage with 20,000 Cards and 50,000 Events, up to 128 floors’ permissions.
Uplink Communication: TCP/IP and RS-485;
Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers;
Input interface: Emergency Button×1,1 Fire Alarm Button×1, 1 Maintenance Button×1, Case Input×2;
Output interface: Door Switch Relay×4, Alarm Relay×4.
Couldn't load pickup availability
- Master elevator controller
- Control 128 floors' permissions
- 20,000 cards and 50,000 events storage
- Uplink Communication: TCP/IP and RS-485
- Multiple authentication modes
- Configure and manage device via web client and client software
- Watchdog and tamper-proof function
- Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers
Device Interface
- CommunicationTCP/IP;RS-485, and Wiegand
- Input Interface1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
- Output Interface5 Relay Outputs
- Internal ClockSupport
- RTCSupport
General
- Working Temperature-40°F to 158°F
- Working Humidity0% to 90% (No Condensation)
- Power Supply12 VDC±15%
- InstallationGuide Rail Installation
- Dimensions167(L)mm*105(W)mm*30(H)mm
System Parameter
- Processor32 bit
- IndicatorPower On: Solid Green,Running Properly: Flashing Green,Running Exception: Solid Red,Serial Port Not Communicating: Off,Serial Port Communicating: Solid Green,Relay NC: Off,Relay NO: Solid Green,Network Disconnected: Off,Network Cable Connected: Solid Yellow, Flashing Green,Network Armed: Solid Yellow, Flashing Green,
- Card readerUp to 2 RS-485 Card Readers or 2 Wiegand Card Readers
