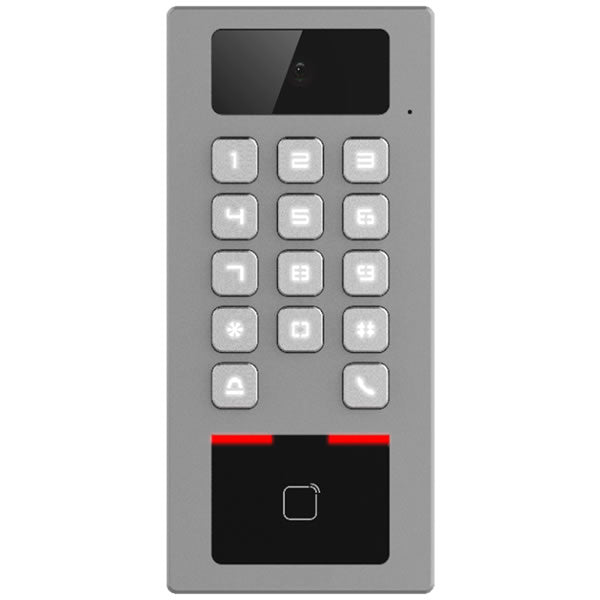

Galaxy Platinum Access Control Terminal With Built-in Camera, Keypad And Reader
Galaxy Platinum Access Control Terminal With Built-in Camera, Keypad And Reader
Model: DS-K1T502DBWX-C
Available in stock
Send a copy to email:
Open here
Manage access control and intercom functions in one device,
IP65 & IK09 protections, as well as increased stability with zinc alloy materials,
Supports multiple authentication methods,
Remote control via the Hik-Connect mobile app,
Connects to external access controller via Wiegand protocol,
Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer, and FreePBX,
RS-485 communication for connecting external card reader and calling elevator,
Supports AP mode,
Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App,
Supports up to 256 GB SD card memory,
Couldn't load pickup availability
- Manage access control and intercom functions in one device
- IP65 & IK09 protections, as well as increased stability with zinc alloy materials
- Supports multiple authentication methods
- Remote control via the Hik-Connect mobile app
- Connects to external access controller via Wiegand protocol
- Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer, and FreePBX
- RS-485 communication for connecting external card reader and calling elevator
- Supports AP mode
- Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
- Supports up to 256 GB SD card memory
- System
- Operating SystemLinux
- Video
- Lens1
- Video Compression StandardH.264 and H.265
- Resolution2 MP
- FOVHFOV = 110°; VFOV = 81°; DFOV = 122°
- Video StandardPAL (Default) and NTSC
- Network
- Wired Network10 M/100 M self-adaptive
- Wi-FiSupport
- Interface
- Network Interface1
- Lock Control1
- Exit Button1
- Door Contact Input1
- Alarm Input1
- Alarm Output1
- TAMPER1
- RS-4851
- Wiegand1 (Input and output)
- SD Card Slot1
- Capacity
- Card Capacity100,000
- Event Capacity300,000
- Authentication
- Card TypeM1 card;DESfire card
- Card Reading Distance0 ~ 3 cm
- Function
- Two-Way AudioSupport
- Video IntercomSupport
- Hik-ConnectSupport
- General
- Power Supply1 A (12 VDC to 24 VDC)
- Power Consumption</=12 W
- Working Temperature-40 C ~ +70 C (-40 °F ~ +158 °F)
- Protective LevelIK09, IP65
- LanguageArabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, and Dutch
