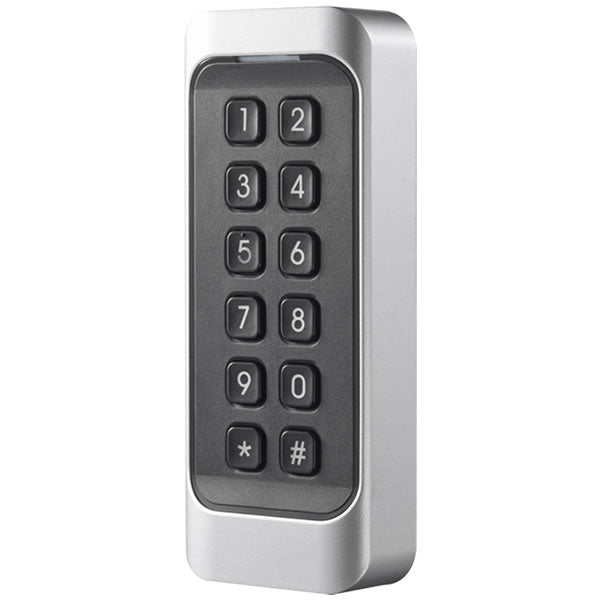

Galaxy Platinum Access Control Reader With Keypad
Galaxy Platinum Access Control Reader With Keypad
Model: DS-K1107AMK
Regular price
$137.42
Sale price
$137.42
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Equipped with the 32-bit high-speed processor,
RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol,
Build-in Mifare card reading module (Frequency: 13.56MHz),
Supports tampering alarm,
Built-in buzzer for identifying the reading status,
Online upgrade function,
Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
Couldn't load pickup availability
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in Mifare card reading module (Frequency: 13.56MHz).
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
- System
- Processor32-bit
- Interface
- TAMPERSupport
- RS-485Support
- WiegandSupport (set via DIP switch)
- Authentication
- Card Reading Frequency13.56 MHz
- Card Reading Distance</=50 mm (</=1.97")
- General
- IndicatorPower indicator, status indicator
- Power Supply12 VDC
- Power Consumption</=2 W
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working Humidity10% to 90% (Non Condensing)
- Protective LevelIP65
- Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
- InstallationWall Mounting with Screws; Do Not Support Gang Box
- KeypadKeypad with 12 Keys (0~9, *, #)
- BuzzerSupport
