Authentication

Card reading frequency

DS-K1102AE/DS-K1102AEK/DS-K1102AEM/DS-K1102AEMK: 125 KHz

DS-K1102AM/DS-K1102AMK/DS-K1102AEM/DS-K1102AEMK: 13.56 MHz

General

Power supply

12 VDC, 500 mA

Power consumption

</= 2 W

Working temperature

-20 °C to 65 °C (-4 °F to 149 °F)

Working humidity

10% to 90% (no condensing)

Dimensions

121 mm × 86.5 mm × 14 mm (4.76" × 3.41" × 0.55")

Installation

Applied for 86 & 120 gang box

Weight

</= 0.14 kg (0.3 lb)

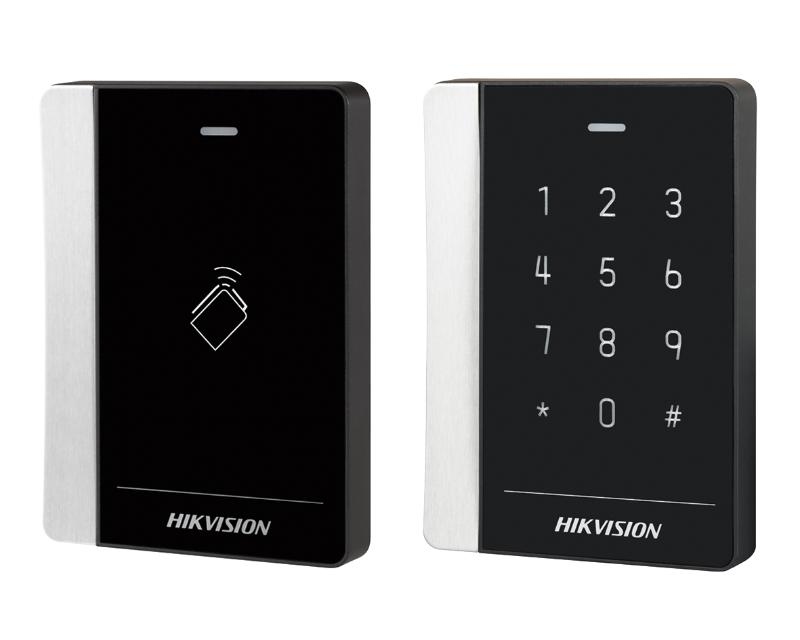

Keypad

DS-K1102AE/DS-K1102AM/DS-K1102AEM: No Keypad

DS-K1102AEK/DS-K1102AMK/DS-K1102AEMK: Keypad with 12 keys (0 to 9, *, #)

Buzzer

Beeper

Function

ID settings

via DIP switch
