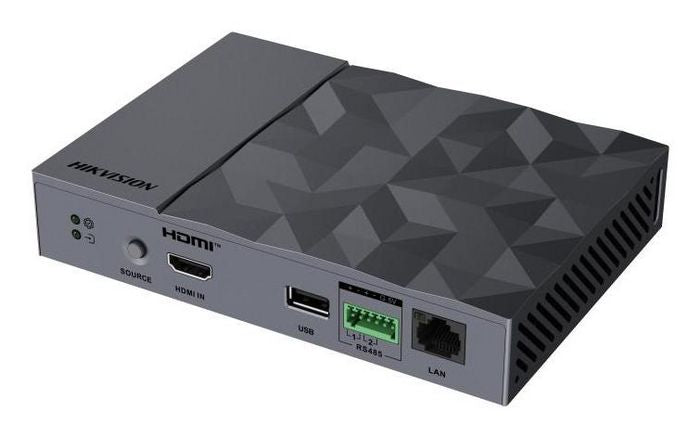

Hikvision LED Controller DS-DT30P-01HI01NO
Hikvision LED Controller DS-DT30P-01HI01NO
Model: DS-DT30P-01HI01NO
Regular price
$220.00
Sale price
$220.00
Regular price
Available in stock
Open here
Couldn't load pickup availability
- Provides buttons on the front panel to change signal source.
- Provides indicator lights on the front panel to show power status, signal input status, operation status, and other information.
- Supports 1 video signal input, compatible with HDMI 1.3 at 1920 × 1080@60 Hz resolution.
- Supports frame rate adaption ranging from 25 Hz to 60 Hz for image collection.
- Supports 1 network port for output with a load capacity of up to 0.65 MP. The maximum width is 2048 pixels and maximum height is 2048 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
- Supports HDMI audio-video composite stream input and 3.5mm audio output.
- Supports full-screen and custom scaling of video signal input and signal source switching.
- Complies with HDCP 1.4 protocol for high-bandwidth digital content protection.
- Supports custom EDID settings.
- Supports custom cable alignment without rectangular frame limit.
- Supports the operation through the client or the LED controller web page.
- Supports configuring the background.
- Supports configuring the startup logo
- Supports configuring the display dehumidification.
- Supports using the remote control to control the display to show the remote UI menu. The remote control needs to be purchased separately.
- Supports adjusting the brightness, contrast, hue, and other parameters of the output image.
- Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
- Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
- Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
- Supports viewing the loading relationship between the device and LED display.
- Supports viewing abnormal display positioning during running.
- Supports checking parameters such as device running status, device memory, CPU usage, and network port usage.
- Supports abnormal cabinet voltage detection and cabinet temperature detection.
- Supports connecting to the central control device and IoT device through RS-485 port.
- Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
- Supports using the control network port to connect to the multi-function card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.
- Provides built-in Android 14 system, 2 GB memory and 32 GB storage and supports multi-media playing.
- Supports program playback via USB flash drive.
- Decodes 2 channels of 1080P multi-media video.
- Supports simultaneous display of Android content and HDMI local source, and Picture-in-Picture (PiP) mode.
| Processing Performance | |
|---|---|
| Brightness Control | 1 to 100 tunable (level-by-level white balance) |
| Input Frame Rate | 25 Hz to 60 Hz |
| Grey Level | 256 |
| Display Color | 16 MP |
| Processing Depth | 8 bit |
| Image Scaling | Supported |
| Product Model | |
| Product Model | DS-DT30P-01HI01NO |
| Chassis | |
| Chassis Height | 28.9 mm(1.14 inch) |
| Chassis Width | 156 mm(6.14 inch) |
| LED Controller Interface | |
| Light Sensor Port | Supported |
| LED Controller Power | |
| Average Consumption | 11 W |
| Power Interface Quantity | 1 |
| Power Interface | 12 V, Φ2.1 |
| Interface | |
| USB Interface | 1 × USB 2.0 |
| Network | |
| Control Network Port | 1 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network. |
| Video Wall | |
| Open Windows | Simultaneously display of 1 channel of HDMI signal source and 1 channel of Android source |
| Background Images | 2 |
| Background Resolution | Min.: 640 × 480, Max.: 1920 × 1200 |
| Background Format | JPG/JPEG |
| General | |
| Working Temperature | -20℃ to 60℃(-4℉ to 140℉) |
| Storage Humidity | 10% RH to 90% RH, no condensation |
| Working Humidity | 10% RH to 90% RH, no condensation |
| Storage Temperature | -20℃ to 60℃(-4℉ to 140℉) |
| Packaging Size (W × H × D) | 210 mm × 85 mm × 127 mm (8.27 inch × 3.35 inch × 5inch) |
| Net Weight | 0.18 kg (0.4 lb) |
| Gross Weight | 0.33 kg (0.73 lb) |
| Dimensions (W × H × D) | 156 mm × 28.9 mm × 110 mm (6.14 inch × 1.14 inch × 4.33 inch) |
| Packing List | 1 × DC adapter, 1 × terminal block, 1 × Rod-shaped Wi-Fi antenna, 1 × Regulatory compliance and safety information manual |
| Product Type | |
| Product Type | LED controller |
| Audio Input | |
| Audio Input Interfaces | 1 |
| Audio Input Interface Type | 1 channel of embedded HDMI input |
| Video Input | |
| Video Input Interfaces | 2 |
| Video Input Interface Type | 1 HDMI 1.3 + 1 embedded Android |
| Max. Video Input Resolution | 1080p |
| Video Input Resolution | HDMI 1.3 port: Max. resolution: 1920 × 1080@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.07 MP@60 Hz Max. width: 320 to 2048, alignment: multiple of 4 Max. height: 180 to 2048, alignment: multiple of 2 Supports HDCP 1.4. Interlacing signal input is not supported. |
| Video Input Processing Feature | Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422 |
| Built-in Android Resolution | 1080p |
| Video Output | |
| Max. Video Output Resolution | 650000 |
| Loading Capacity for Video Output to LED | Single port load 650000, Width 144 - 2048, Height 64 - 2048, Width must be a multiple of 2 and height must be a multiple of 1 |
| LED Loading Interfaces | 1 |
| LED Loading Interface Type | RJ-45 |
| Audio Output | |
| Audio Output Interfaces | 1 |
| Audio Output Interface | 3.5mm audio output |
| System | |
| System | Android 14 |
| Memory Capacity | 2 GB |
| Storage Capacity | 64 GB |
| CPU | 4-core 64-bit ARM cortex-A53 2.0 GHz |
| Wireless | |
| Wi-Fi | 2.4 GHz |
| Antenna | 1 × rod-shaped Wi-Fi antenna |
| Remote Control | Supported(RF remote control) |
| Device Parameters | |
| Button | Source: change signal source between HDMI and Android sources |
| Serial Interface | 1 × RS-485 serial port for central control device (green Phoenix contact, baud rate: 115200, data bit: 8)+1 × RS-485 serial port for temperature humidity sensor (green Phoenix contact, baud rate: 115200, data bit: 8) |
| Broadcast Control Feature | |
| File Format | Video, image, music, document, text, stream media, clock, network camera, HDMI signal source |
| Program Playback | Supports starting and stopping program playback |
| Playback Attribute | Supports configuration of window size, position, and playback time. Supports program creation and schedule configuration. |
| Video Playback Performance | Supports 1 channel of 4K@30 or 2 channels of 1080p@60 multi-media video |
| Front Panel | |
| Indicator | Active: The device is running. Source: The signal source is connected. |
