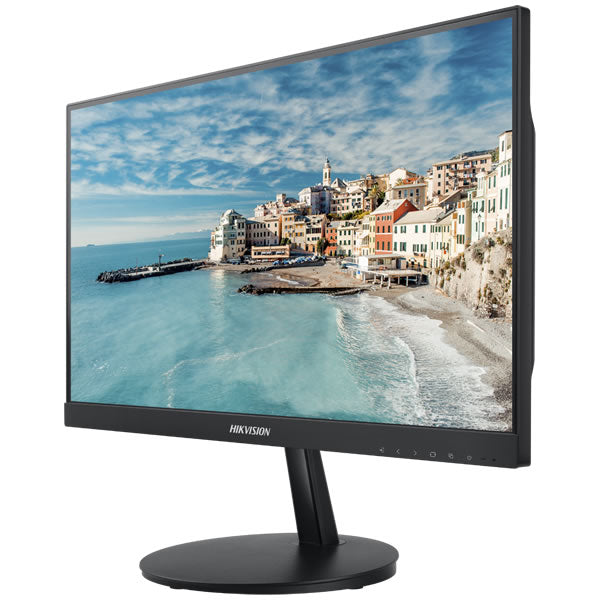

Galaxy Platinum 21.5 inch FHD Borderless Monitor
Galaxy Platinum 21.5 inch FHD Borderless Monitor
Model: DS-D5022FN-C
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Ultra-thin device body with ultra-thin border for 3 sides,2 channels of 8 bit/10 bit LVDS HD (1920*1080) display,178° ultra-wide view screen,3D noise reduction,Low blue light design for eye care,Dual interface of HDMI and VGA,Support VESA wall mount
Couldn't load pickup availability
- Ultra-thin device body with ultra-thin border for 3
- 2 channels of 8 bit/10 bit LVDS HD (1920*1080)
- 178° ultra-wide view
- 3D noise
- Low blue light design for eye
- Dual interface of HDMI and
- Support VESA wall
|
Model |
DS-D5022FN-C |
|
|
Display |
Screen Size |
21.5 |
|
Active Display Area |
478.656 (H) mm × 260.28 (V) mm |
|
|
Resolution |
1920 × 1080 |
|
|
Backlight |
E-LED |
|
|
Pixel Pitch |
0.0831 (H) mm × 0.241 (V) mm |
|
|
Brightness |
250 cd/m^2 |
|
|
Viewing Angle |
178°/178° |
|
|
Color Depth |
8 bit |
|
|
Contrast Ratio |
3000 : 1 |
|
|
Response Time |
6.5 ms(typ) |
|
|
Refresh Rate |
60 Hz |
|
|
Haze |
25 % |
|
|
Reliability |
7 × 16 H |
|
|
Color Gamut |
72% |
|
|
Interface |
Video & Audio Input |
HDMI 1.4 × 1, VGA × 1, Audio In × 1 |
|
Power |
Power Supply |
100-240 VAC, 50/60 Hz |
|
Power Consumption |
</= 22 W |
|
|
Standby Consumption |
</= 0.5 W |
|
|
Working Environment |
Working Temperature |
0 C to 40 C (32 C to 104 C) |
|
Working Humidity |
20% to 90% RH (Non-Condensing) |
|
|
Storage Temperature |
-20 C to 60 C (-4 C to 140 C) |
|
|
Storage Humidity |
10% to 90% RH (Non-Condensing) |
|
|
General |
Casing Material |
Plastic |
|
VESA |
75 mm × 75 mm, 4-M6 × 6 screw holes |
|
|
Bezel Width |
1.88 mm (top/left/right), 19 mm (bottom) |
|
|
Product Dimensions (W × H × D) |
With base: 492.356 (W) mm × 390.11 (H) mm × 200.20 (D) mm (19.38'' × 15.36'' × 7.88'') Without base: 492.356 (W) mm × 289.680 (H) mm × 43.88 (D) mm (19.38'' × 11.40'' × 1.73'') |
|
|
|
Package Dimensions (W × H × D) |
647 (W) mm × 111 (H) mm × 406 (D) mm (25.49'' × 4.37'' × 15.99'') |
|
Net Weight |
2.6 ± 0.5 kg (5.7 ± 1.1 lb.) |
|
|
Gross Weight |
4.0 ± 0.5 kg (8.8 ± 1.1 lb.) |
|
|
Packing List |
Monitor ×1, AC power cable × 1, base bracket × 1, user manual × 1, quick start guide × 1, HDMI cable × 1 |
|
|
Remarks |
*The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information. |
