DS-D4639CD-1AC
DS-D4639CD-1AC
Model: DS-D4639CD-1AC
Regular price
$0.01
Sale price
$0.01
Regular price
Available in stock
Open here

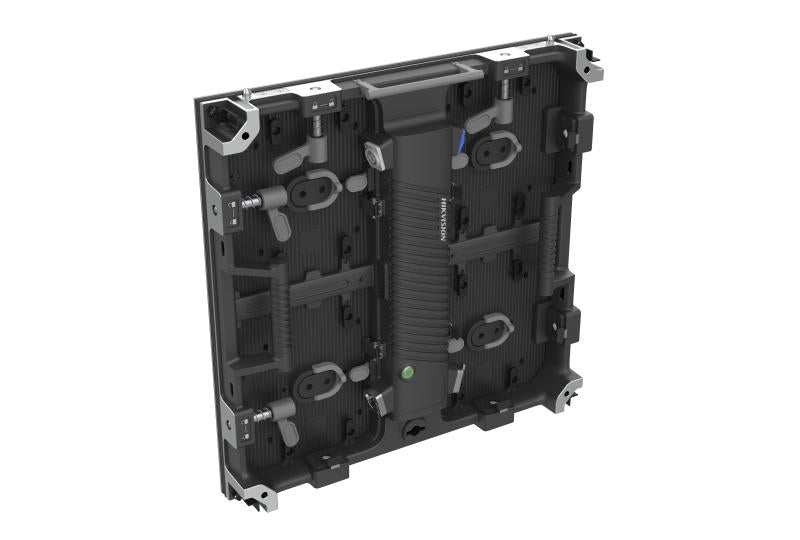

Indoor, Pixel pitch 3.9 mm, 500*500mm/cabinet with curvelock, 128 * 128 resolution/cabinet, scan rate 1/24, 1000nits,7680Hz. Front&rear-maintenance, Quick Installation Design, with 10-in-1 Flighcase
Couldn't load pickup availability
- Feather light and thin: the weight of cabinet 500 × 500mm <7.1kg, thickness only 69mm
- Creative Splicing: ±10° integrated curve lock, 500 × 500mm and 500 × 1000mm cabinets can be spliced vertically
- High image quality: Up to 1000nit brightness for indoor product, 7680Hz high refresh rate, excellent contrast and color performance for an immersive stage experience
- Faster installation & easier maintenance: Modular design with special eject button, all components can be quickly assembled, disassembled and maintained within 5 seconds
- Concise appearance and sturdy cabinet design, focusing on providing one-stop solution for all your LED display needs: conferences, stages, product launches and real estate activities
| Cabinet | |
|---|---|
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch Category | P3.9 |
| Pixel Pitch | 3.9063 mm |
| Modules Component | 2 × 2 |
| Dimensions (W × H × D) | 500mm × 500mm × 69mm |
| Resolution | 128 × 128 |
| Area | 0.25 m² |
| Weight | 7 kg |
| Pixel Density | 65536 dots/m² |
| Lamp Board Housing | With housing |
| Cabinet Material | Die-casting Aluminium |
| Maintenance Method | Front & Rear maintenance |
| Protection Level | IP40 |
| Display | |
| White Balance Brightness | 1000 cd/㎡ |
| Color Temperature | 6500K adjustable |
| Viewing Angle | Horizontal 160°, vertical 140° |
| Contrast Ratio | ≥ 6000:1 |
| Color Uniformity | ≤ ± 0.004Cx, Cy |
| Brightness Uniformity | ≥ 97％ |
| Processing Performance | |
| Driving Method | 1/16 |
| Frame Frequency | 50/60 Hz |
| Refresh Rate | 7680 Hz |
| Grey Level | 14-bit |
| Key Material | |
| Lamp Encapsulation | SMD1921 |
| Control System | Hikvision |
| Power | |
| Power Supply | 110~220 VAC ± 15% |
| Max. Consumption | ≤ 490 W/m² (1000nits) |
| Average Consumption | ≤163 W/m² |
| Working Environment | |
| Working Temperature | -20 ℃ to +45 ℃ (-4 ℉ to +113 ℉) |
| Working Humidity | 10% ~ 90%RH (No condensation) |
| Storage Humidity | 10% ~ 90%RH (No condensation) |
| Storage Temperature | -40 ℃ to +60 ℃ (-40 ℉ to +140 ℉) |
| General | |
| Gross Weight | 108 kg /10 in 1 |
| Package Dimension (W × H × D) | 1092(W) × 580(D) × 610(H) mm |
