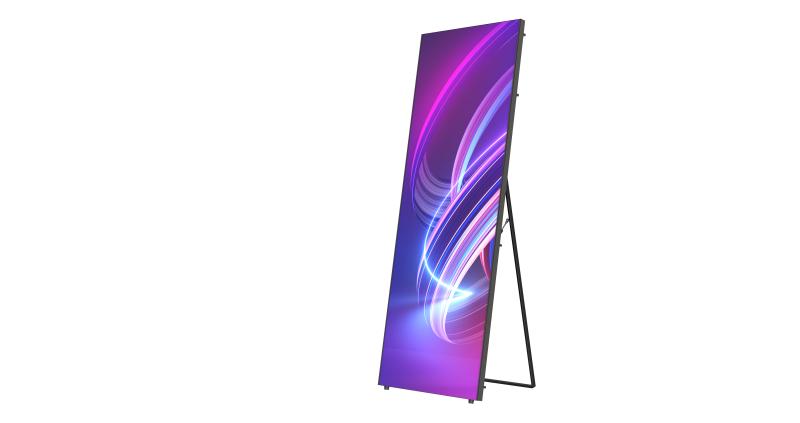

Model: DS-D4515CH-1FQ
Regular price
$0.01
Sale price
$0.01
Regular price
Available in stock
Open here
Indoor, Pixel pitch 1.56 mm, Glue on board, . 70 inch/cabinet, 600nits. Paper box transportation. Accessories: LED Modular *1, Hydraulic inclined support bracket *1, network cable *1, HDMI Cable *1, IR remote control *1, wrench *1.
Couldn't load pickup availability
- The cabinet features a highly integrated, lightweight, and streamlined design with a magnetic butterfly-frame, enabling fast horizontal splicing and flexible combinations.
- Incorporates proprietary lossless image processing and ultra-low grayscale control technologies, delivering delicate, smooth visuals and outstanding dynamic color performance.
- Supports multiple remote content management methods, including local control, USB drive input, and PC-based operation.
- Fully self-developed display control system ensures end-to-end stability, security, and controllability. System modules can be easily maintained or replaced, with front-access LED modules supporting single-pixel repairs.
- Allows for multi-unit cascading display with a built-in sending card, eliminating the need for external control devices.
- Multiple installation options available: built-in angled support bracket, mobile stand, wall mount
- Optimized for close-range viewing scenarios with HOB LED panel protection, offering enhanced resistance to moisture, impact, and environmental stress.
- Supports multiple configuration methods including local remote control, software, and web interface, offering more convenient operation.
| Product Model | |
|---|---|
| Product Model | DS-D4515CH-1FQ |
| Cabinet | |
| Pixel configuration | SMD Triad LED (with glue) |
| Pixel Pitch Category | P1.5 |
| Pixel pitch | 1.5625 mm |
| Lamp Bead Dimensions | 1.24 x 1.22 mm |
| Modules Component | Cabinet × 5, single cabinet (2 × 2) |
| Dimensions (W × H × D) | 600 (W) mm × 1687.5 (H) mm ×29.5 (D) mm (23.622'' × 66.435'' × 1.161'') |
| Resolution | 384 × 1080 |
| Area | 1.0125 ㎡ |
| Pixel density | 409600 dots/㎡ |
| Lamp Board Housing | Without housing, glue potting |
| Cabinet material | Diecasting Aluminium |
| Maintenance method | Front maintenance |
| Display | |
| White balance brightness | 600 cd/㎡ |
| Color temperature | 1700-15000K adjustable |
| Viewing angle | 160°(H)/160°(V) |
| Contrast ratio | 4000：1 |
| Color uniformity | ± 0.003Cx，Cy |
| Brightness uniformity | ≥ 97％ |
| Processing Performance | |
| Driving method | Constand Current Driving |
| Frame frequency | 60 Hz |
| Refresh rate | 3840 Hz |
| Grey level | 22 bit+ |
| Power | |
| Input Voltage | 100~240 VAC ± 10％ |
| Max. Consumption | ≤410 W/㎡(600nit) |
| Average Consumption | ≤136 W/㎡ |
| Working Environment | |
| Opration Temperature | -10 ℃~40 ℃ |
| Operation Humidity | 10%~60%RH |
| Storage humidity | -20 ℃ ~ 60 ℃ |
| Storage temperature | -20 ℃~60 ℃ |
| General | |
| Package Dimension (W × H × D) | 1860 (W) mm × 715 (H) mm × 186 (D) mm (73.23 '' × 28.15 '' × 7.32 '') |
| Accessory | 50 LED lamp beads, 10 IC chips, 1 network cable, 1 power cable, 1 HDMI cable, 1 multilingual user manual, 1 remote control, 1 magnetic adjustment rod, 1 cable clip, 1 Phillips screwdriver, 1 hex key wrench, 1 power cable , 1 spare LED module |
| Gross Weight | 39 kg/1 in 1 (85.98 lb.) |
| Net Weight | 33.4 kg(73.63 lb.) |
