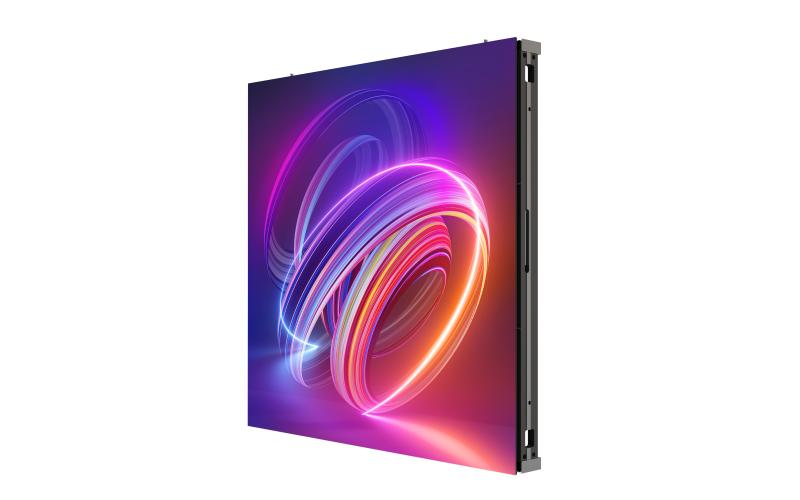

DS-D4280GO-2AAA
DS-D4280GO-2AAA
Model: DS-D4280GO-2AAA
Regular price
$0.01
Sale price
$0.01
Regular price
Available in stock
Open here
Outdoor, Pixel pitch 8 mm, 960*960mm/cabinet, 120 * 120 resolution/cabinet, IP66, peak brightness 10000 nits, Gold wiring, Aluminum cabinet desigin, Working under 60℃ without AC, Energy-saving design, Front/Rear maintenance
Couldn't load pickup availability
- Adopt energy-saving scheme, RGB LED IC power supply accurate distribution, energy consumption reduced by 40%+
- Well-designed heat dissipation scheme to cope with hot weather without air conditioner
- Use aviation plug to transmit power and signal between the cabinet, with excellent sun protection and corrosion resistance
- The aluminum cabinet features high flatness of splicing and weighs only 24 kg.
- Meet CE/CB and other international certification standards, stable and reliable quality
| Cabinet | |
|---|---|
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch Category | P8.0 |
| Pixel Pitch | 8 mm |
| Modules Component | 3 × 2 |
| Dimensions (W × H × D) | 960 mm × 960 mm × 100 mm (37.795'' × 37.795'' × 3.973'') |
| Resolution | 120 × 120 |
| Area | 0.9216 m² |
| Weight | 27.8 Kg |
| Pixel Density | 15625 dots/m² |
| Maintenance Method | Front/Rear maintenance |
| Waterproof Level | IP66 |
| Component Material | Aluminum Profile |
| Display | |
| White Balance Brightness | 9000 nit (Factory preset brightness) 10000 nit (Peak) |
| Color Temperature | 9300K adjustable |
| Viewing Angle | Horizontal 160°, vertical 130° |
| Contrast Ratio | ≥ 8000:1 |
| Color Uniformity | ≤ ± 0.003Cx，Cy |
| Brightness Uniformity | ≥ 97％ |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 50/60 Hz |
| Refresh Rate | Up to 7680 Hz |
| Grey Level | 14~16 bit adjustable |
| Key Material | |
| Lamp Encapsulation | 2727(gold wire) |
| Control System | Hikvision |
| Power | |
| Power Supply | 110~220 VAC ± 15% |
| Max. Consumption | ≤ 485 W/㎡ |
| Average Consumption | ≤ 162 W/㎡ （9000nits） |
| Working Environment | |
| Working Temperature | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉) |
| Working Humidity | 10%~95%RH (No condensation) |
| Storage Humidity | 10%~95%RH (No condensation) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| General | |
| Gross Weight | 32.35 kg /1 in 1 |
| Package Dimension (W × H × D) | 1140 (W) mm × 244 (H) mm × 1068 (D) mm |
| Lifespan | Lamp 100,000 hours |
