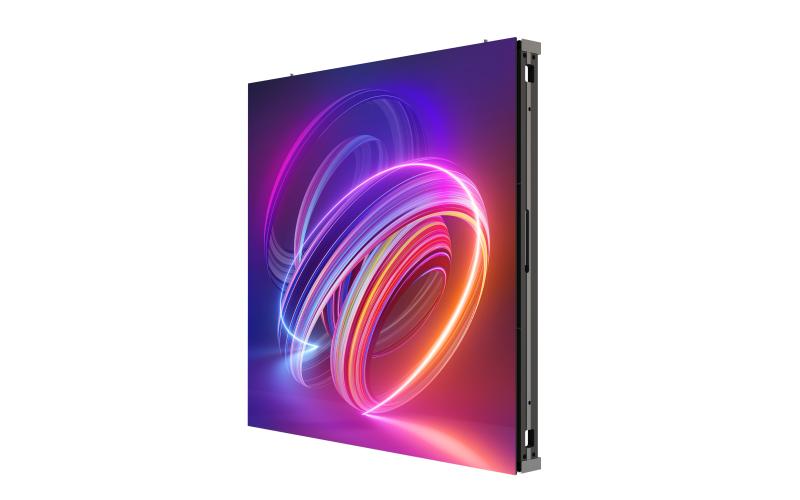

DS-D4257CO-2APA
DS-D4257CO-2APA
Model: DS-D4257CO-2APA
Regular price
$0.01
Sale price
$0.01
Regular price
Available in stock
Open here
Outdoor, Pixel pitch 5.71 mm, 960*960mm/cabinet, 168 * 168 resolution/cabinet, IP66, peak brightness 7000 nits, Copper wiring, Aluminum cabinet desigin, Working under 60℃ without AC, Energy-saving design, Front/Rear maintenance
Couldn't load pickup availability
- Adopt energy-saving scheme, RGB LED IC power supply accurate distribution, energy consumption reduced by 40%+
- Well-designed heat dissipation scheme, no air conditioning can deal with high temperature weather *
- Use aviation plug to transmit power and signal between the box, with excellent sun protection and corrosion resistance
- Adopt aluminum cabinet, splicing flatness is high, weight only 24kg/pcs
- Meet CE/CB and other international certification standards, stable and reliable quality
| Cabinet | |
|---|---|
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch Category | P5.7 |
| Pixel Pitch | 5.71 mm |
| Modules Component | 3 × 2 |
| Dimensions (W × H × D) | 960 mm × 960 mm × 100 mm (37.795'' × 37.795'' × 3.973'') |
| Resolution | 168 × 168 |
| Area | 0.9216 m² |
| Weight | 24 Kg |
| Pixel Density | 30625 dots/m² |
| Maintenance Method | Front/Rear maintenance |
| Waterproof Level | IP66 |
| Display | |
| White Balance Brightness | 6500 nit (Factory preset brightness) 7000 nit (Peak) |
| Color Temperature | 9300K adjustable |
| Viewing Angle | Horizontal 160°, vertical 130° |
| Contrast Ratio | ≥ 8000:1 |
| Color Uniformity | ≤ ± 0.003Cx，Cy |
| Brightness Uniformity | ≥ 97％ |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 50/60 Hz |
| Refresh Rate | Up to 7680 Hz |
| Grey Level | 14~16 bit adjustable |
| Key Material | |
| Lamp Encapsulation | 2727 (Copper) |
| Control System | Hikvision |
| Power | |
| Power Supply | 110~220 VAC ± 15% |
| Max. Consumption | ≤ 480 W/㎡ |
| Average Consumption | ≤160 W/m² (6500nits) |
| Working Environment | |
| Working Temperature | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉) |
| Working Humidity | 10%~95%RH (No condensation) |
| Storage Humidity | 10%~95%RH (No condensation) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| General | |
| Gross Weight | 27.8kg /1 in 1 |
| Package Dimension (W × H × D) | 1140 (W) mm × 244 (H) mm × 1068 (D) mm |
| Lifespan | Lamp 100,000 hours |
