DS-D4248CD-1AAB
DS-D4248CD-1AAB

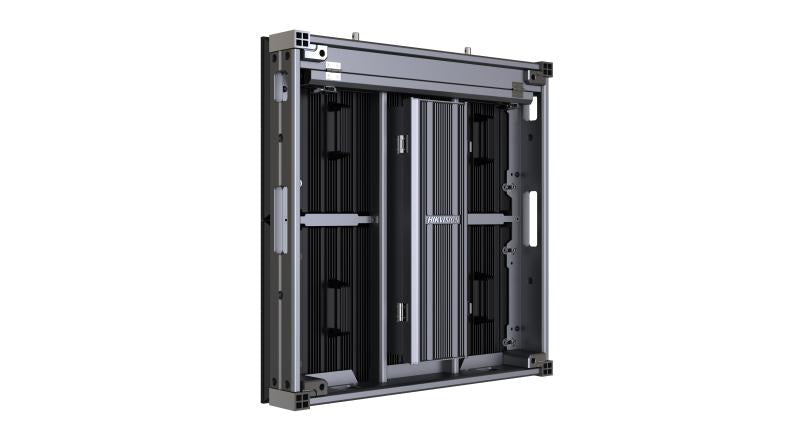

Model: DS-D4248CD-1AAB
Regular price
$0.01
Sale price
$0.01
Regular price
Available in stock
Open here
Outdoor, Pixel pitch 4.8 mm,500*500mm/cabinet, 104 * 104 resolution/cabinet, IP66, peak brightness 5000 nits, Copper wiring, Aluminum cabinet desigin, Working under 60℃ without AC, Energy-saving design, Front/Rear maintenance
Couldn't load pickup availability
- Aluminum box structure design, box light, high flatness, support IP66 protection level, support front and back maintenance two maintenance methods
- Aluminum profile + aluminum shell, all metal aluminum box configuration, high heat dissipation efficiency
- Support automatic dehumidification, effective protection of long time or humid environment lamp bead
- Support wall type, floor type and other installation methods
- Adopt aviation plug design, installation and construction is simple and efficient
- Solder joint using lead-free non-toxic solder paste material, will not cause harm to human body and environment
| Cabinet | |
|---|---|
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch Category | P4.8 |
| Pixel Pitch | 4.81mm |
| Modules Component | 1 × 2 |
| Dimensions (W × H × D) | 500 mm × 500 mm × 97 mm |
| Resolution | 104×104 |
| Area | 0.25 m² |
| Weight | 9.12 Kg |
| Pixel Density | 43264 dots/m² |
| Lamp Board Housing | With housing |
| Cabinet Material | Aluminum Profile |
| Maintenance Method | Front and Rear maintenance |
| Cabinet Flatness | 0.8 mm |
| Protection Level | IP66 |
| Display | |
| White Balance Brightness | 4500 nit (Factory preset brightness) 5000 nit (Peak) |
| Color Temperature | 9300K adjustable |
| Viewing Angle | Horizontal 160°, vertical 128° |
| Contrast Ratio | ≥ 5000:1 |
| Color Uniformity | ≤ ± 0.003Cx，Cy |
| Brightness Uniformity | ≥ 95％ |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 60 Hz |
| Refresh Rate | Up to 3840 Hz |
| Grey Level | Up to 14 bit |
| Key Material | |
| Lamp Encapsulation | 1921 |
| Control System | Hikvision |
| Power | |
| Power Supply | 110~220 VAC ± 15% |
| Max. Consumption | ≤ 650W/㎡ （4500nits） |
| Average Consumption | ≤ 210 W/㎡ （4500nits） |
| Working Environment | |
| Working Temperature | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉) |
| Working Humidity | 10%~80%RH |
| Storage Humidity | 10%~90%RH |
| Storage Temperature | -40 ℃ to +60 ℃ (-40 ℉ to +140 ℉) |
| General | |
| Gross Weight | 10.85KG/1 in 1 |
| Package Dimension (W × H × D) | 610mm x 165mm x 606mm |
| Lifespan | Lamp 100,000 hours |
