DS-D4025CS-2F
DS-D4025CS-2F

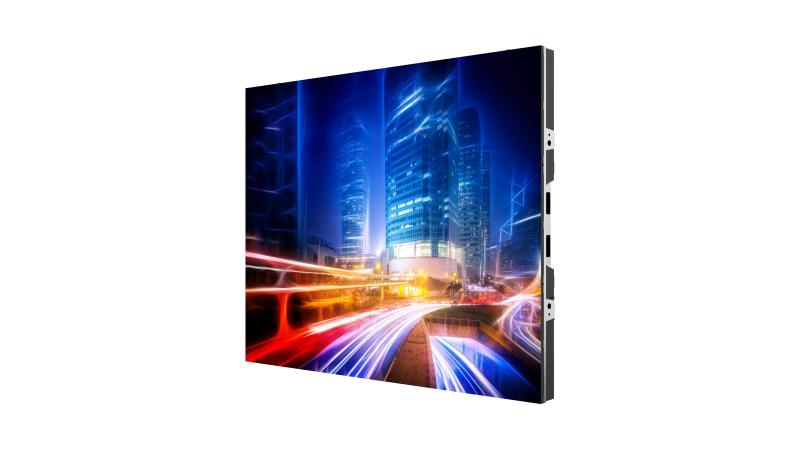

Model: DS-D4025CS-2F
Regular price
$0.01
Sale price
$0.01
Regular price
Available in stock
Open here
Indoor, Pixel pitch 2.50 mm, Surface-Mounted Device, 640*480mm/cabinet, 256 * 192 resolution/cabinet, 600nits; Hikvision control system stem
Couldn't load pickup availability
- High refresh rate and Ultra-high contrast ratio, more delicate and smooth video , and more realistically image with excellent color performance
- 4:3 ratio cabinet, best choice for high cost performance
- Highly integrated and compatible cabinet with simple and lightweight design
- Cable-free design and Ultra-thin backshell for easier installation, easier to level the lamp boards, and make the splicing more flat
- Modular structure design, support module, power supply, receiver card front maintenance
| Product Model | |
|---|---|
| Product Model | DS-D4025CS-2F |
| Product Type | |
| Product Type | Indoor small pitch full color LED |
| Cabinet | |
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch | 2.5mm |
| Pixel Pitch Category | P2.5 |
| Pixel Density | 160000 dots/m² |
| Modules Component | 2 × 3 |
| Dimensions (W × H × D) | 640 (W) mm × 480 (H) mm ×36 (D) mm (25.197'' × 1.898'' × 1.42'') |
| Resolution | 256 × 192 |
| Area | 0.3072 ㎡ |
| Weight | 5.5 kg (12.13 lb.) |
| Cabinet Material | Die cast aluminum |
| Maintenance Method | Complete front maintenance |
| Module | |
| Dimensions | 320×160mm |
| Module Resolution | 128 × 64 |
| Display | |
| White Balance Brightness | 600 cd/㎡ |
| Color Temperature | 3000-10000 K adjustable |
| Viewing Angle | 160°(H)/160°(V) |
| Contrast Ratio | 5000:1 |
| Color Uniformity | ≤ ± 0.003Cx，Cy |
| Brightness Uniformity | ≥ 97％ |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz |
| Grey Level | Up to 16 bit |
| Power | |
| Max. Consumption | ≤450W/㎡ |
| Average Consumption | ≤150W/㎡ |
| Input Voltage | 100~240 VAC ± 10％ |
| Working Environment | |
| Working Temperature | -10 ℃ to 40 ℃ (14 ℉ to 104 ℉) |
| Working Humidity | 10% to 60% RH (without condensation) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 10% to 85% RH (without condensation) |
| General | |
| Package Dimensions (W × H × D) | 758 (W) mm × 606 (H) mm × 442 (D) mm (29.843 '' × 23.858 '' × 17.402 '') |
| Packing List | Regulatory Compliance and Safety Information × 1 Several Joint pieces,Fixing screws and Signal cables Several LED lamp beads and IC components |
| Gross Weight | 6.5 kg (14.3 lb.) |
| Net Weight | 5.5 kg (12.13 lb.) |
| Bracket | |
| Modular Bracket | DP-D40XXCA23-1X1-Q0.3-NW-Q0.3-HC 1*1;DP-D40XXCA23-2X2-Q1-NW-Q1-HC 2*2 |
