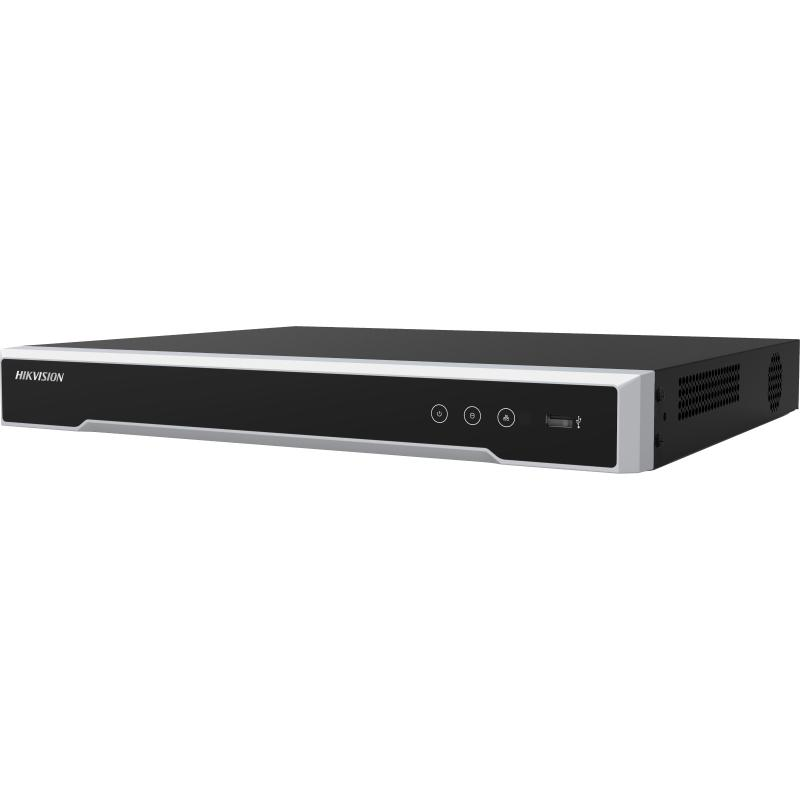

Galaxy 16CH 32MP 2x SATA NVR w/ 16CH PoE
Galaxy 16CH 32MP 2x SATA NVR w/ 16CH PoE
Model: DS-7616NI-M2/16P
Available in stock
Send a copy to email:
Open here
up to 4MP16CH IP up to 4MP (2560x1440), 256Mbps, 1x HDMI, 1x VGA, H.265+/H.265,
2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps), Audio 1in/1out, Alarm 4in/1out, 1x RJ45 10/100/1000M, 2x SATA up to 16TB/ea, 1xUSB2.0, 1xUSB3.0
Couldn't load pickup availability
Professional and Reliability
-
H.265+ compression effectively reduces the storage space by up to 75%
-
Dual-stream recording saves bandwidth
-
Adopt stream over TLS encryption technology which provides more secure stream transmission service
-
Support double verification for playback and downloading
-
Solar-powered camera is connectable through OTAP protocol. NVR would get stream when user requests, and camera would send back videos according to the schedule
HD Video Output
-
Provide independent HDMI and VGA outputs
-
HDMI video output at up to 8K resolution
Storage and Playback
-
Up to 2 SATA interfaces for HDD connection
-
16-ch synchronous playback
Smart & POS Function
-
Support multiple VCA (Video Content Analytics) events
-
Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
-
POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
-
16 independent PoE network interfaces
-
1 self-adaptive 10/100/1000 Mbps Ethernet interface
-
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
-
Smooth streaming technology
-
Support web access without plug-in
|
Video and Audio |
|
|
IP Video Input |
16-ch Up to 32 MP resolution *: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
Incoming Bandwidth |
256 Mbps |
|
Outgoing Bandwidth |
256 Mbps |
|
HDMI Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
VGA Output |
1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
Video Output Mode |
HDMI/VGA independent output |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ohm), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Audio Output |
1-ch, RCA (Linear, 1 K Ohm) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 K Ohm, using the audio input) |
|
Decoding |
|
|
Decoding Format |
H.265+/H.265/H.264+/H.264 |
|
Recording Resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
Synchronous Playback |
16-ch |
|
Decoding Capability |
2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
|
Dual-Stream Recording |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
|
Network |
|
|
Remote Connection |
128 |
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
|
Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
PoE |
|
|
Interface |
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
Power |
</= 200 W |
|
Standard |
IEEE 802.3 af/at |
|
Auxiliary Interface |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 16 TB capacity for each HDD |
|
Alarm In/Out |
4/1 |
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Consumption |
</= 15 W (without HDD and PoE off) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
|
Weight |
</= 3 kg (without HDD, 2.2 lb.) |
|
Certification |
|
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
CE |
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
