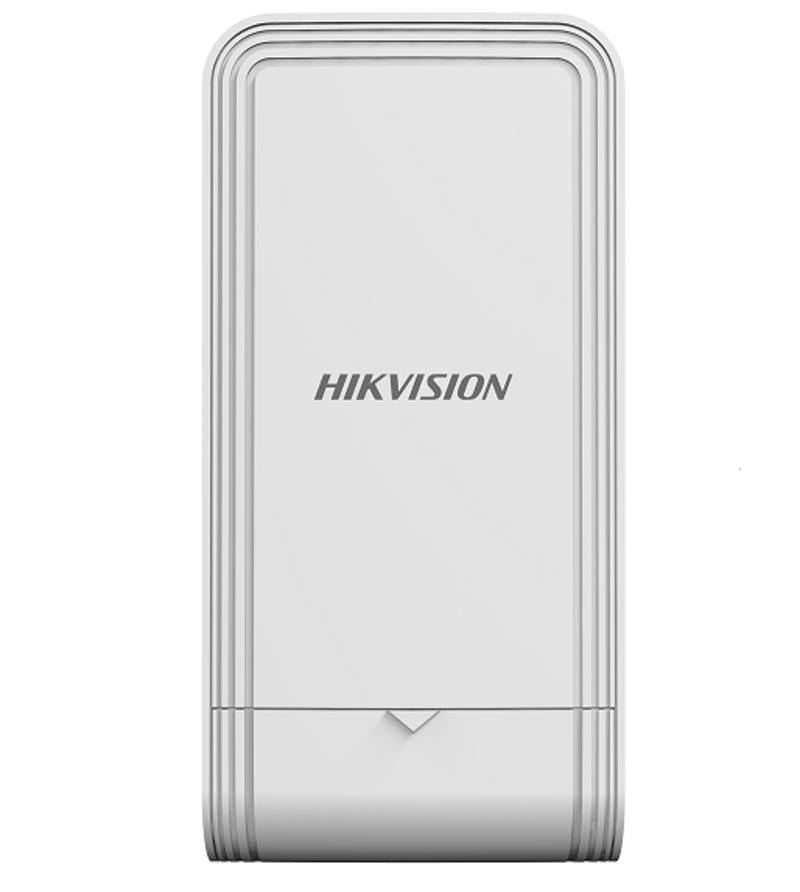

Hikvision Wireless Bridges DS-3WF1000S-EI-2N/P
Hikvision Wireless Bridges DS-3WF1000S-EI-2N/P
Model: DS-3WF1000S-EI-2N/P
Regular price
$70.00
Sale price
$70.00
Regular price
Available in stock
Open here
Couldn't load pickup availability
| Model | DS-3WF1000S-EI-2N/P |
|---|---|
| Product Category | Networking |
| Product Type | Wireless Bridges |
| Product Series | Outdoor Wireless Bridge |
| Offering | Outdoor Series |
| Physical | |
| Product Type | 2.4 GHz 300 Mbps 1 km wireless bridge |
| Product Dimensions (W × H × D) | 90.8 × 187.87 × 57.87 mm |
| Package Dimensions (W × H × D) | 132 × 228 × 91 mm |
| Net Weight | 0.26 kg per device |
| Gross Weight | 0.58 kg |
| Packing List | Wireless bridge ×1, binding tape ×2, quick start guide ×1, compliance and safety information ×1, PoE supply ×1, AC cord ×1 |
| Packing Method | Single-unit packaging |
| Working Temperature | -30 °C to 60 °C |
| Working Humidity | 5% to 95% non-condensing |
| Storage Temperature | -40 °C to 80 °C |
| Storage Humidity | 5% to 95% non-condensing |
| Installation Mode | Pole mounting |
| Ingress Protection | IP55 |
| Power Consumption | Typical 1.8 W (1-channel 2MP IP camera); max. 4.5 W |
| Wireless | |
| Wireless Standard | IEEE 802.11b/g/n; 2×2 MIMO, 300 Mbps |
| Air Interface Maximum Rate | ≤300 Mbps |
| Working Frequency Band | 2400–2483.5 MHz |
| Antenna Gain | 7 dBi |
| Antenna Beamwidth | Horizontal 60°, vertical 50° (3 dB) |
| Transmitting Power | 22 dBm at 11n MCS0 (subject to local regulation) |
| Receiving Sensitivity | -87 ±2 dBm at HT40 MCS0 |
| Throughput | Point-to-point: 90 Mbps / 0.2 km, 90 Mbps / 0.5 km, 70 Mbps / 1 km; Point-to-multipoint (1 to 4): 40 Mbps / 1 km (HT40) |
| Ports & Power | |
| PoE Ports | LAN1 passive PoE input; LAN2 IEEE 802.3af PoE output |
| PoE Power Budget | 10 W |
| PoE Distance | 100 m |
| Ethernet | 2 × 10/100 Mbps RJ45 |
| LED Indicators | Power, LAN, signal strength |
| Reset | Hardware reset button |
| Power Supply | 48 V PoE |
| Software | |
| Application Function | IFM, IPM |
| Channel Width | 10/20/40 MHz |
| Channel Selection | Automatic or manual |
| Wireless Security | WPA2-PSK; hidden network name |
| Network Protocol | NTP, SADP, HTTPS/HTTP, SSH |
| Management | Hik-Partner Pro, HikCentral Professional, Web, iVMS-4200 |
| System Logs | Syslog, control centre information |
| Firmware Upgrade | Web, iVMS-4200, HCP, HPP |
| Approval | |
| EMC | EN 55032, EN 50130-4, EN 55035, EN IEC 61000-3-2, EN 61000-3-3 |
| Safety | IEC 62368-1; EN 62368-1 |
| Environmental | RoHS, WEEE, REACH |
| Radio | EN 301 489-17, EN 301 489-1, EN 300 328, EN IEC 62311 |
