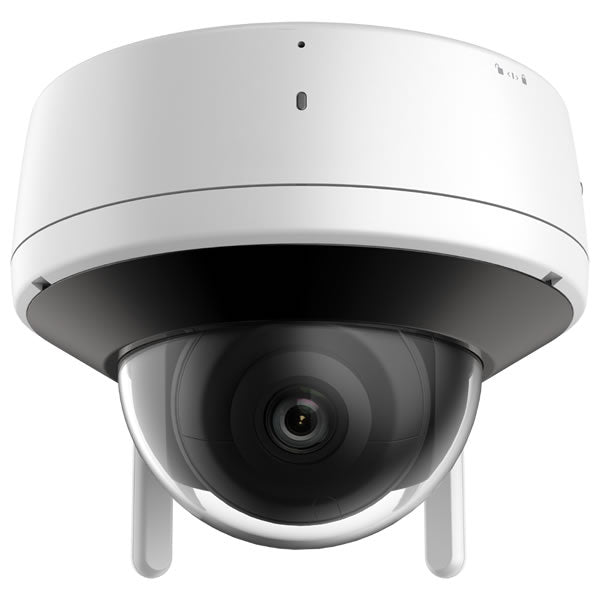

Galaxy Platinum 4MP IR Fixed WIFI Dome Camera
Galaxy Platinum 4MP IR Fixed WIFI Dome Camera
Model: DS-2CV2141G2-IDW
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4MP, 2560x1440@20fps, H.265+, 120dB WDR, Day & Night, 0.005 Lux@F1.6, IR, up to 30m (98ft), Built-in Mic/Speaker, Audio, MicroSD slot, 2.8mm Fixed Lens, DC12V, IP66, Optional:DS-1271ZJ-120, DS-1272ZJ-120, DS-1272ZJ-120B, Optional: DS-1272ZJ-120, DS-1272ZJ-120B, DS-1271ZJ-120
Couldn't load pickup availability
- High quality imaging with 4 MP resolution
- Realizing Wi-Fi connection and easy installation
- Provides real-time security via built-in two-way audio
- Efficient H.265 compression technology
- EXIR 2.0, advanced infrared technology with long IR distance
- Wi-Fi connection with Hik-Connect directly is not possible
- Water and dust resistant (IP66)
- Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111°
4 mm, horizontal FOV 79°, vertical FOV 40°, diagonal FOV 94°
- ApertureF1.6
- Iris TypeFixed
- Lens MountM12
- Depth Of Field
2.8 mm: 1.4 m to Inf
4 mm: 1.5 m to Inf
- DORI
- DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- SecurityPassword protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client
Wired network: Hik-Connect, iVMS-4200
Wi-Fi: iVMS-4200
*Wi-Fi connection with Hik-Connect directly is not possible.
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Wi-Fi
- Wi-Fi Protocol802.11n: OFDM,802.11b: CCK, QPSK, BPSK,802.11g: OFDM
- Frequency Range2.412 GHz to 2.472 GHz
- Channel Bandwidth20/40 MHz
- Modulation802.11n: OFDM ,802.11b: CCK, QPSK, BPSK,802.11g: OFDM
- Transfer Rate11n: up to 300 Mbps
- Wireless Range
Up to 120 m
(The performance varies based on actual environment)
- Antenna2 Antennas
- Image
- Image Settingssaturation, brightness, contrast, sharpness, adjustable by client software or web browser
- Day/Night SwitchAuto, Schedule, Day, Night
- Wide Dynamic Range (WDR)120 dB
- SNR>/= 52 dB
- Image EnhancementBLC, 3D DNR
