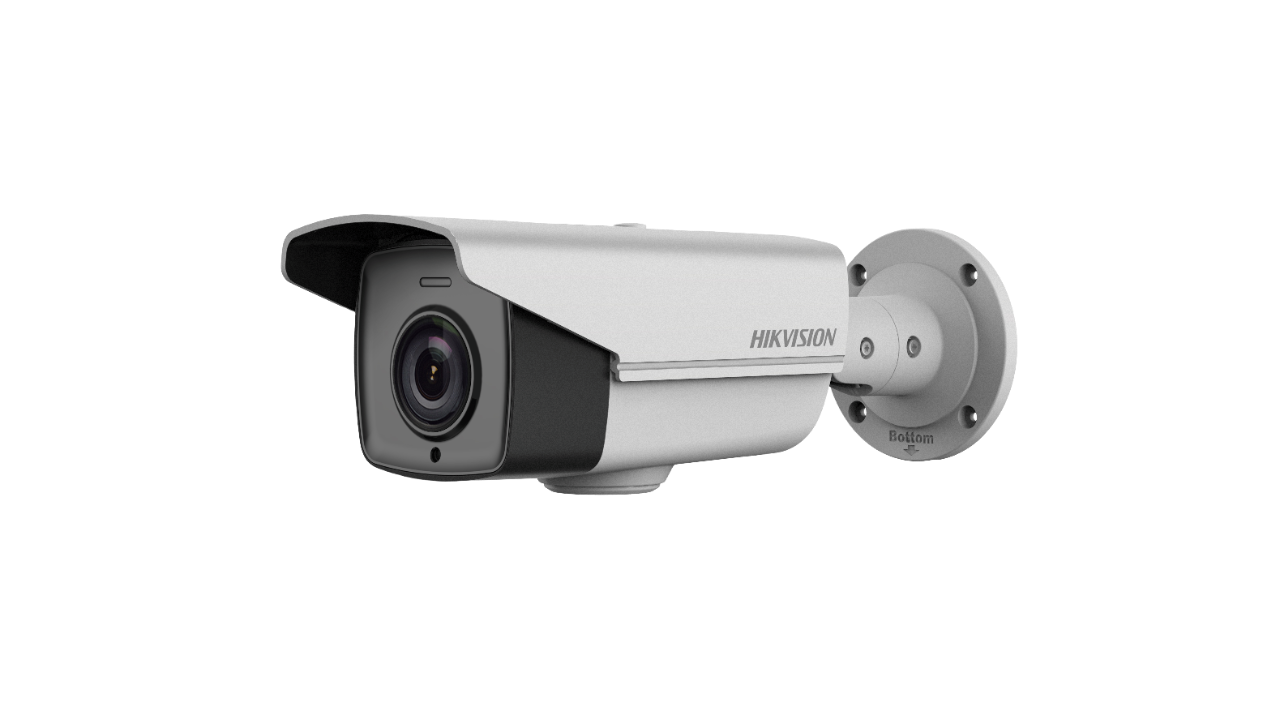

Galaxy Platinum 2MP IR Motorized VF HD-TVI Bullet Camera
Galaxy Platinum 2MP IR Motorized VF HD-TVI Bullet Camera
Model: DS-2CE16D9T-AIRAZH
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
2MP, 1920x1080@30fps, 120dB WDR, 0.003Lux@F1.2, Motion Detection, Day&Night (ICR), CVBS output, IR up to 120m (394ft), OSD/OTC,5~50mm Motorized VF Lens, AC24V/DC12V, IP66
Couldn't load pickup availability
- 2 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 5 mm to 50 mm motorized varifocal lens focuses automatically when zooming in or out
- Up to 120 m IR distance for bright night imaging
- Water and dust resistant (IP67)
- Dual outputs (HDTVI and CVBS signals output simultaneously)
- Transmits both HD video and power over the same coaxial cable
- Heater is available with 24 VAC
|
Camera |
|
|
Image Sensor |
2MP CMOS Image Sensor |
|
Max. Resolution |
1944(H)*1092(V) |
|
Min. Illumination |
0.003 Lux @ (F1.2,AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25(1/30)s to 1/50,000s |
|
Day ? Night |
ICR |
|
Angle Adjustment |
Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360° |
|
Signal System |
PAL/NTSC |
|
Application |
Indoor/ Outdoor/ Indoor1/ LOW-LIGHT |
|
Lens |
|
|
Lens Type |
Angle of view: 59.8°-6.2° |
|
Image |
|
|
Image Settings |
HSBLC, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM, LSC (Lens Shading Correction) |
|
Frame Rate |
1080P@25/30fps |
|
Day/Night Mode |
Color/BW/EXT |
|
Wide Dynamic Range (WDR) |
120dB |
|
SNR |
>62dB |
|
Image Enhancement |
BLC |
|
Privacy Mask |
On/Off, maximum 8 zones |
|
White Balance |
ATW/ AWC-SET/ Manual |
|
AGC |
Support |
|
Interface |
|
|
Video Output |
TVI&CVBS |
|
Event |
|
|
Motion Detection |
On/Off, maximum 4 zones |
|
General |
|
|
Dimension |
313.5x100.8x107.3mm |
|
Weight |
1650g |
|
Operating Condition |
-40 °C 60 °C (-40 °F 140 °F), Humidity 90% or less (non-condensing) |
|
Communication |
Up the coax, Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) |
|
Language |
Chinese/ English |
|
Power Supply |
AC24V±15%/ DC12V±15%, Heater is available with 24VAC only |
|
Consumption |
Max. 20W |
|
IR Range |
Up to 120m |
|
Approval |
|
|
Protection |
IP67 |
