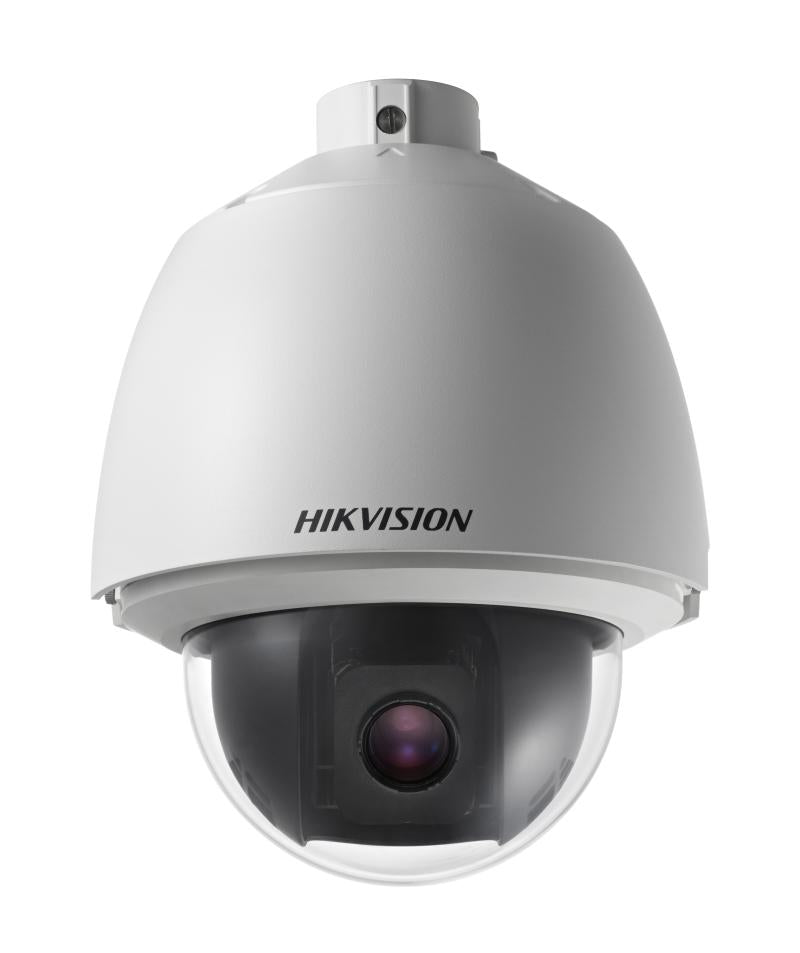

Hikvision DS-2AE5225TG(O-STD) AE PTZ
Hikvision DS-2AE5225TG(O-STD) AE PTZ
Model: DS-2AE5225TG(O-STD)
Available in stock
Send a copy to email:
Open here
Couldn't load pickup availability
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for closer viewing of subjects in expansive areas
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Max. Resolution |
1920 × 1080 |
|
Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
|
Shutter Speed |
PAL: 1/1 s to 1/30,000 s NTSC: 1/1 s to 1/30,000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
25 × optical, 16 × digital |
|
Lens |
|
|
Focal Length |
4.8 mm to 120 mm, 25 × optical |
|
FOV |
Horizontal FOV: 57.6° to 2.5° (wide to tele) Vertical FOV: 34.4° to 1.4° (wide to tele) Diagonal FOV: 64.5° to 2.9° (wide to tele) |
|
Focus |
Auto, semi-auto, manual |
|
Aperture |
F1.6 to F3.5 |
|
Zoom Speed |
Approx. 3.6 s (optical, wide to tele) |
|
PTZ |
|
|
Movement Range (Pan) |
360° endless |
|
Movement Range (Tilt) |
-5° to 90° (auto flip) |
|
Pan Speed |
Pan manual speed: 0.1° to 250°/s Pan preset speed: 250°/s |
|
Tilt Speed |
Tilt manual speed: 0.1° to 150°/s Tilt preset speed: 150°/s |
|
Proportional Pan |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Presets |
256 |
|
Preset Freezing |
Yes |
|
Patrol Scan |
10 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
5 patterns, record time over 10 minutes for each scan |
|
Park Action |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/One-touch Patrol/None |
|
Scheduled Task |
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
|
Power-off Memory |
Yes |
|
Video |
|
|
Frame Rate |
50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080) |
|
Network |
|
|
Protocols |
UTC protocol (or HIKVISION-C protocol in previous DVR) |
|
Image |
|
|
Image Settings |
AGC, white balance |
|
Wide Dynamic Range (WDR) |
≥ 120 dB |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Privacy Mask |
8 programmable privacy masks |
|
Interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
|
Alarm |
2 alarm inputs, 1 alarm output |
|
RS-485 |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|
General |
|
|
Power |
36V DC, max. 24 W |
|
Dimension |
Φ 220 mm × 280 mm (Φ 8.66" × 11.03") |
|
Weight |
Approx. 3 kg (6.61 Ib.) |
|
Operating Condition |
-30° C to 65° C (-22° F to 149° F). Humidity 90% or less |
|
Language |
English |
|
Approval |
|
|
Protection |
IP66 (outdoor dome), IK10, TVS 4,000 V lightning protection, surge protection and voltage transient protection |
