CT101-915M
CT101-915M

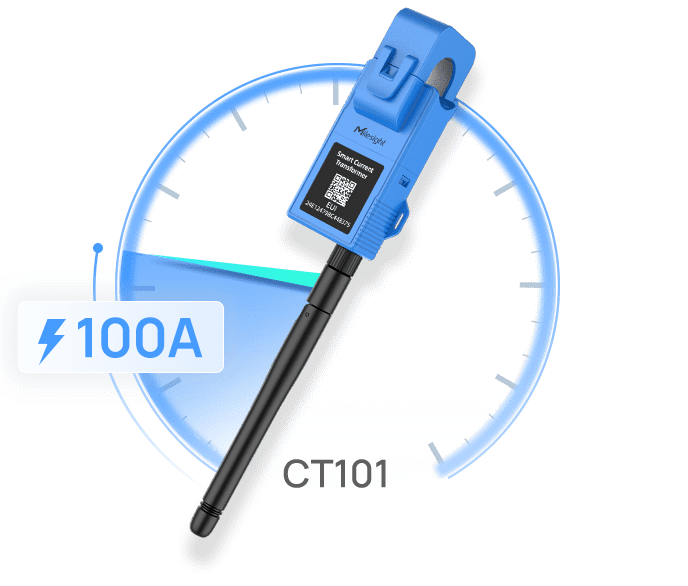

Model: CT101-915M
Available in stock
Open here
Power Supply: Induced Current Power Supply
Report the RMS Current and Accumulated Current Data by Minutes
High Measuring Accuracy with a Sampling Frequency of up to 3.3 kHz
Self-powered, Free from Batteries or External Wires
Utilize a Sampling Rate of up to 1s for Real-time Monitoring and Quick
Alarm Response
Support Flexible Detachable Design
Support to Connect to a Temperature Sensor via USB for Cable
Temperature Measurement
Equipped with LED Indicator to Indicate Working Status and Alarms
Compliant with Standard LoRaWAN® Gateways and Network Servers
Low voltage active alarm
Optional reporting of cumulative ampere-hour value or cumulative energy
consumption value
IP30 Rated
Couldn't load pickup availability
- Power Supply: Induced Current Power Supply
- Report the RMS Current and Accumulated Current Data by Minutes
- High Measuring Accuracy with a Sampling Frequency of up to 3.3 kHz
- Self-powered, Free from Batteries or External Wires
- Utilize a Sampling Rate of up to 1s for Real-time Monitoring and Quick
- Alarm Response
- Support Flexible Detachable Design
- Support to Connect to a Temperature Sensor via USB for Cable
- Temperature Measurement
- Equipped with LED Indicator to Indicate Working Status and Alarms
- Compliant with Standard LoRaWAN® Gateways and Network Servers
- Low voltage active alarm
- Optional reporting of cumulative ampere-hour value or cumulative energy
- consumption value
- IP30 Rated
| Product Type | Smart Current Transformer |
|---|---|
| Model | CT101-915M |
| Measurement | Detection Parameter: RMS Current Working Frequency: 50~60 Hz Input current range: CT101: 1.5A ~ 100A CT103: 3A ~ 250A Operating Temperature: -20°C ~ +70°C Storage Temperature: -25°C ~ +80°C Accuracy: ± 1 % Resolution: 1 mA |
