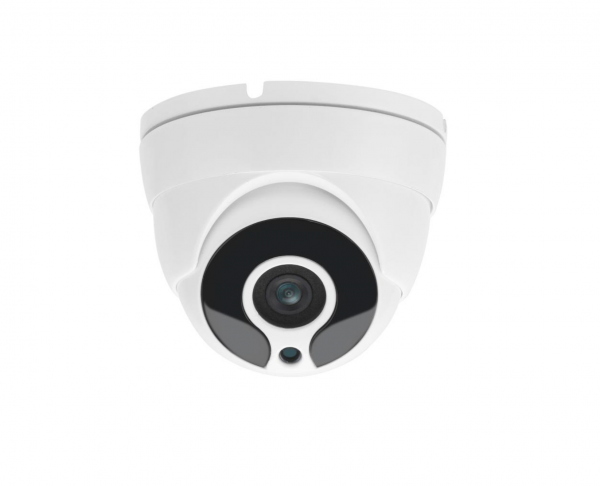

UNV 5MP TVI Camera
UNV 5MP TVI Camera
Model: AHD3615SR3-F28-C
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
AHD, HDCVI, HDTVI, XVI, CVBS, 5MP, 1080p
Couldn't load pickup availability
K05 1/2.9 Sensor.
5MP resolution.
AHD:5M20/12.5fps, 4M25/30/15fps, 1080P25/30fps, TVI: 5M20/12.5fps, 4M25/30/15fps, 1080P25/30fps.
DWDR, 3DNR.
support OSD.
Power input DC12V.
Operation Temperature -30? to 55?.
|
Camera |
|
|
Active Pixel |
2560*1944 |
|
SYNC. |
Internal |
|
Resolution |
5MP |
|
VIDEO.OUT |
AHD:5M20/12.5fps 4M25/30/15fps 1080P25/30fps TVI:5M20/12.5fps 4M25/30/15fps 1080P25/30fps CVI:4M25/30fps 1080P25/30fps CVBS:PAL/NTSC |
|
Minimum Illumination |
0.05Lux(F1.2) |
|
S/N Ratio |
48dB(min)(AGC closed) |
|
AE |
GLOBE/BLC/FLC |
|
WB |
ATW/MWB |
|
DNR |
1-16 |
|
D-WDR |
OFF/ON |
|
MIRROR |
DEFAULT/H/V/HV |
|
OSD |
Yes |
|
Language |
Eng ,Chin1, Chin2,pycc,italiano,portuges |
|
Day/Night |
Auto,Color,B/W,Ext |
|
Power Input |
DC12V±1V |
|
Power Dissipation |
65mA-75mA |
|
Transmission distance |
75-5 300M |
|
Operation Temperature |
Temperature -30C+55C,Humidity less than 85%RH |
|
Dimension |
32*32/38*38*1.6(H) |
