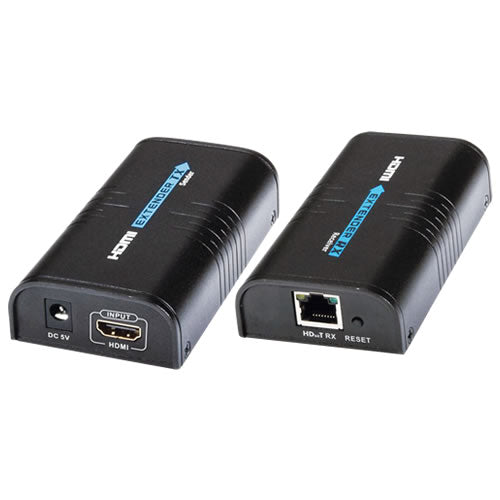

HDMI 1080P Extender Via Network Cable (up to 120 Meter)
HDMI 1080P Extender Via Network Cable (up to 120 Meter)
Model: ADP-HDMIEXT120M
Available in stock
Extends HDMI up to 100 meters for 1080p over one CAT5, Follow the standard of IEEE-568B, Supports resolutions up to 1080p Full HD, Supports Ethernet bandwidth 100M, HDCP compliant
Couldn't load pickup availability
Taking advantage of the latest transmission technology to extend HDMI video up to 120m/394ft with max. resolution up to 1080P@60Hz through network Cable.
- Transmit HDMI signal over network cable
- Extend HDMI signal over a single CAT6 up to 120m
- Transmitting resolution up to 1920x1080P@60Hz
- Compatible with existing network
- Support 7x24 hour of continuous work
- Functional as both extender and splitter
- Support various kinds of video signal input, such as VGA, SDI and DVI
Connection



| Model | ADP-HDMIEXT120M |
| HDMI Signal | HDMI 1.3, compatible with HDCP1.2 |
| Transport protocol | HDbitT |
| Network cable | UTP/STP CAT5/5e/6 |
| Support resolution | 480i/480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080P@50/60Hz, 1080i@50/60Hz |
| Transmission distance | Max. 120 meter for 1080P Full HD through single CAT6, 80m through CAT5, 100m through CAT5e |
| Working Temperature | 0-60 Celsius degree |
| Power supply | DC 5V/1A |
| Power consumption | TX 3.5W, RX 3W |
| Dimension | 110*58*26mm (L*W*H) |
| Net Weight | TR 125g; RX 120g |
