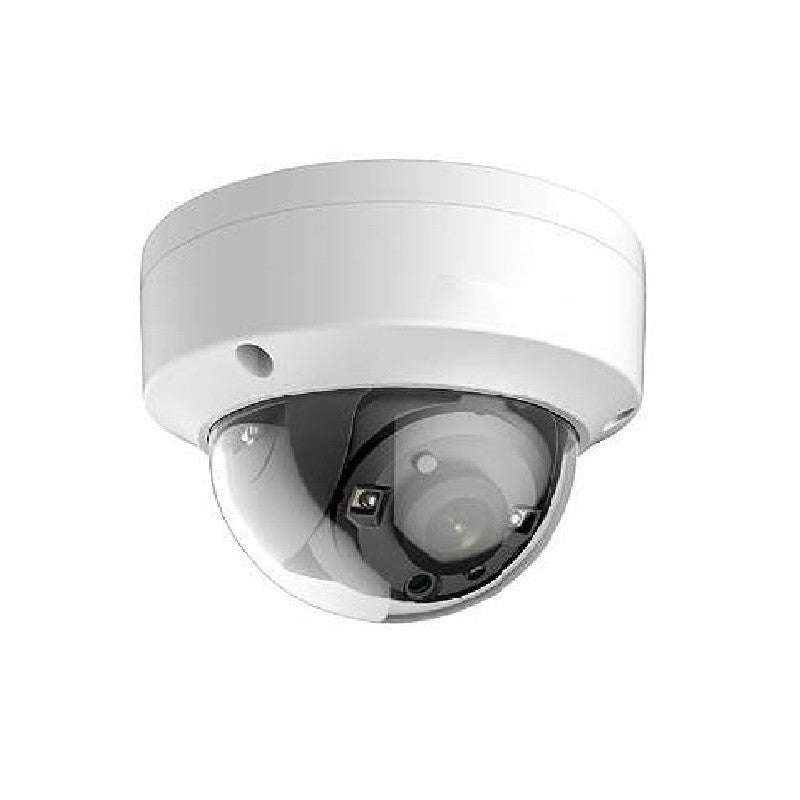

Galaxy Platinum 2MP IR Outdoor HD-TVI Dome Camera
Galaxy Platinum 2MP IR Outdoor HD-TVI Dome Camera
Model: AC344-OD/C-3.6
Regular price
$66.99
Sale price
$66.99
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
HD 1080P, Adopt HDTVI technology, 1/3" Sensor, DWDR, Up to 65ft (20m) IR distance, OSD Menu, Day & Night(ICR), Up the coax (need UTC controller), IP66, 3.6mm Lens, DC12V
Couldn't load pickup availability
- HD 1080P, Adopt HDTVI technology, 1/3" Sensor
- DWDR, Up to 65ft (20m) IR distance
- OSD Menu, Day & Night(ICR)
- Up the coax (need UTC controller), IP66
- 2.8mm Lens, DC12V
| Camera | |
| ImageSensor | 1/2.7"ProgressiveScanCMOS |
| SignalSystem | PAL/NTSC |
| EffectivePixels | 1930(H) x 1088(V) |
| Min.Illumination | 0.1Lux@(F1.2,AGCON),0LuxwithIR |
| ShutterTime | 1/25(1/30)sto1/50,000s |
| Lens | 2.8mm (115.6deg.) |
| LensMount | M12 |
| AngleAdjustment | Pan:0-360deg.,Tilt:0-90deg.,Rotation:0-360deg. |
| Day&Night | ICR |
| Synchronization | Internalsynchronization |
| VideoFrameRate | 1080p@25fps/1080p@30fps |
| HDVideoOutput | 1turboHDoutput |
| CVBSOutput | 1Vp-pCompositeOutput(75ohm/BNC) |
| S/NRatio | Morethan52dB |
| Menu | |
| CameraID | On/off(0-255) |
| AGC | Support |
| D/NMode | Color/BW/Auto/EXT |
| WhiteBalance | Auto/User/Push/8000K/6000K/4200K/3000K |
| PrivacyMask | On/Off,maximum2zones |
| MotionDetection | On/Off,maximum4zones |
| BLC | Support |
| Anti-flicker | On/Off |
| Language | English/Chinese |
| Functions | Digitalnoisereduction,Mirror |
| General | |
| WorkingTemperature/Humidity | -40°C-60°C(-40°F-140°F) Humidity90%orless(non-condensing) |
| PowerSupply | 12VDC |
| PowerConsumption | Max.3W |
| IR Range | Upto20m |
| ImpactProtection | IEC60068-2-75test,Eh,20J;EN50102,uptoIK10. |
| Communication | Upthecoax Protocol:HIKVISION-C(Coaxitron) |
| Dimension | Dia.111x82.4(Dia.4.37"x3.24") |
| Weight | 550g(1.21lb) |
