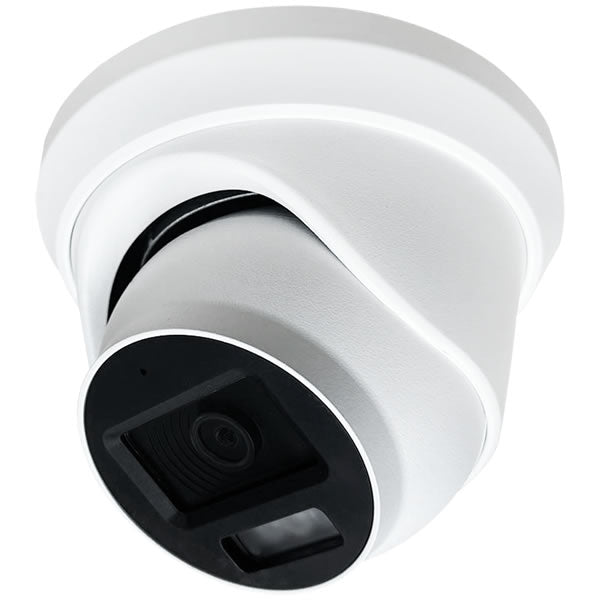

Galaxy Platinum HD Analog 4-in-1 5MP Dual Light Audio Fixed Turret Camera-3.6mm
Galaxy Platinum HD Analog 4-in-1 5MP Dual Light Audio Fixed Turret Camera-3.6mm
Model: AC326-FD/LA-3.6
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
5MP, 2960x1665@20fps, TVI/AHD/CVI/CVBS Switchable, DWDR, White Light, IR up to 40m (131ft), White Light up to 20m (65ft), IP67, 3.6mm Fixed Lens, DC12V
Couldn't load pickup availability
- High quality imaging with 3K, 2960 × 1665 resolution
- 2.8 mm or 3.6 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Specification |
|
|
Camera |
|
|
Image Sensor |
3K CMOS |
|
Max. Resolution |
2960 (H) × 1665 (V) |
|
Min. Illumination |
0.01 Lux@(F1.6, AGC ON), 0 Lux with IR |
|
Shutter Time |
PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
|
Day & Night |
ICR |
|
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
|
Signal System |
PAL/NTSC |
|
Lens |
|
|
Lens Type |
2.8 mm and 3.6 mm fixed focal lens |
|
Focal Length & FOV |
2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4° |
|
Lens Mount |
M12 |
|
Illuminator |
|
|
Supplement Light Type |
White Light,IR |
|
Supplement Light Range |
IR : Up to 40 m White Light : Up to 20 m |
|
Image |
|
|
Image Settings |
Brightness, Sharpness, Smart IR |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC |
|
Day/Night Mode |
Auto/Color/BW (Black and White) |
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
Image Enhancement |
DWDR/BLC/HLC/Global |
|
White Balance |
Auto/Manual |
|
AGC |
Yes |
|
Interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
|
General |
|
|
Material |
Body: Metal; Enclosure: Plastic |
|
Dimension |
97.9 mm × Ø110 mm (3.85" × Ø4.33") |
|
Weight |
Approx. 340 g (0.75 lb.) |
|
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
|
Communication |
HIKVISION-C |
|
Language |
English |
|
Power Supply |
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
|
Consumption |
Max. 3.3 W |
|
Approval |
|
|
Protection |
IP67 |
