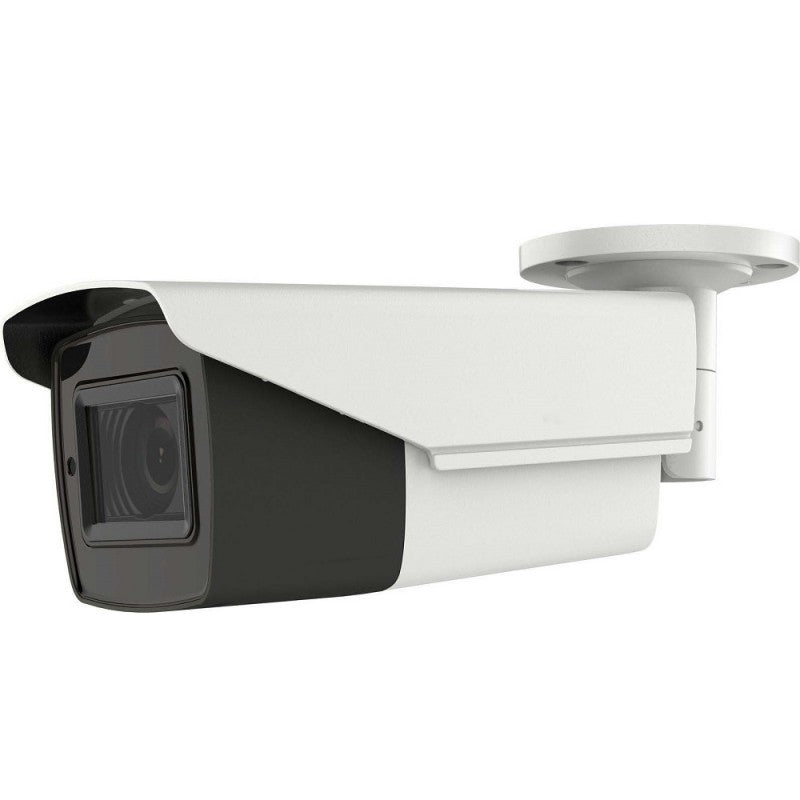

Galaxy Platinum 8MP 4-in-1 IR Motorized VF Bullet Camera
Galaxy Platinum 8MP 4-in-1 IR Motorized VF Bullet Camera
Model: AC318D-VB4Z
Regular price
$317.55
Sale price
$317.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
8MP, 3840x2160@15fps, TVI/CVI/AHD/CVBS output, 105dB DWDR, 0.01Lux@F1.2, Day&Night(ICR), IR up to 262ft (80m), OSD/UTC, 2.7~13.5mm Motorized VF Lens, DC12V, IP67, Optional: DS-1280ZJ‐S
Couldn't load pickup availability
- 8.29 MP high performance CMOS
- Auto focus
- 3840 x 2160 resolution
- 2.7 mm to 13.5 mm motorized vari?focal lens
- EXIR 2.0, Smart IR, up to 80 m IR distance
- OSD menu, DNR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- Up the coax (UTC?C)
| Camera | |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N |
| Resolution | 3840 (H) x 2160 (V) |
| Min. illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s |
| Lens | 2.7 mm to 13.5 mm motorized vari?focal lens |
| Horizontal Field of View | 108.1° to 45.6° |
| Lens Mount | Dia.14 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| DWDR (Digital Wide Dynamic Range) | 105 dB |
| Menu | |
| AGC | Yes |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| BLC | Yes |
| DWDR (Digital Wide Dynamic Range) | Yes |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | ?40 °C to 60 °C (?40 °F to 140 °F), humidity: 90% or less (non?condensation) |
| Power Supply | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC |
| Power Consumption | Max. 10.8 W |
| Protection Level | IP67 |
| Material | Front cover: Metal Main body: Plastic Bracket: Metal |
| IR Range | Up to 80 m |
| Communication | Up the coax, Protocol: UTC?C (TVI output) |
| Dimensions | 84.5 mm x 92 mm x 255.1 mm (3.33" x 3.62" x 10") |
| Weight | Approx. 695 g (1.53 lb.) |
