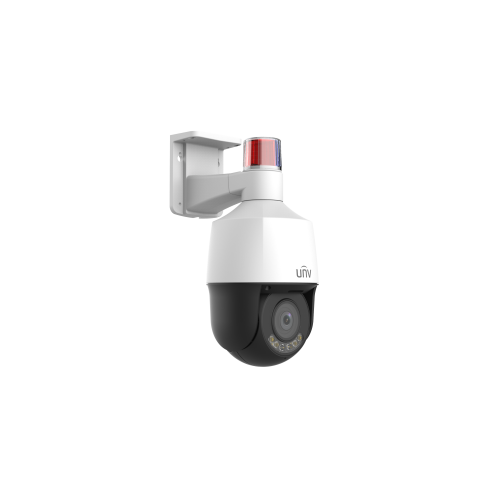

UNV 4MP 5X Wise-ISP Tri-Guard Warm light Network PTZ Camera

Model

IPC6324LWH-AX5C-VG2

Camera

Sensor

1/1.8" CMOS

Min. Illumination

Colour: 0.0005 Lux (F1.2, AGC ON)

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 to 1/100000 s

WDR

120 dB

S/N

>56 dB

Lens

Focal Length

2.7 to 13.5 mm

Optical Zoom

5X

Field of View (H)

113.69° to 50.29°

Field of View (V)

59.46° to 28.45°

Field of View (D)

156.23° to 59.34°

DORI

DORI Distance (Lens)

2.7 to 13.5 mm

DORI Distance (Detect)

98.6 to 209.9 m (323.3 to 688.7 ft)

DORI Distance (Observe)

39.4 to 84.0 m (129.3 to 275.5 ft)

DORI Distance (Recognize)

19.7 to 137.7 m (64.7 to 137.7 ft)

DORI Distance (Identify)

9.9 to 21 m (32.3 to 68.9 ft)

Illuminator

Illumination Distance (Warm

Light)

40 m

Light On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Video Bit Rate

128 Kbps to 6144 Kbps

U-code

Support

ROI

Support

Video Stream

Triple streams

Privacy Mask

Up to 4 areas

OSD

Up to 8 OSDs

Frame Rate-Main Stream

4MP (2560 x 1440)@25fps (Default) 4MP (2688 x 1520), Max 30fps;

4MP (2560 x 1440), Max 30fps;

Events

Basic Detection

Motion detection, Audio detection, Tampering alarm

General Function

Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User

authentication

Motion Detection

Support

Tampering Detection

Support

Audio Detection

Support

UMD (Ultra Motion Detection)

Support

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

128 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8 kHz, 16 kHz

Storage

Edge Storage

Micro SD, up to 512 GB

Intelligent

Auto Tracking

Support, target filtering: human only

Smart Intrusion Prevention

Support false alarm filtering: cross Line detection, intrusion detection (based on human body

and vehicle detection)

Network

Protocols

TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP,

RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

Compatible Integration

ONVIF (Profile S,Profile G,Profile T), API

Security

Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest

authentication for ONVIF

Client

EZStation, EZLive, EZView

Web Browser

Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79

and above


White Balance

Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

Digital Noise Reduction

2D/3D DNR

Flip

Normal, Flip vertical, Flip horizontal, 180°

HLC

Support

BLC

Support

Defog

Digital defog

PTZ

Number of Presets

1024

Preset Patrol

16 patrols, up to 64 presets for each patrol

Patrol Stay Time

120 s to 1800 s

Home Position

Support

Number of Presets (IPC)

1024

Pan Range

0° to 345°

Pan Speed

1°/s to 50°/s

Tilt Range

-10° to 100°

Tilt Speed

1°/s to 40°/s

Number of Patrol

16

Interface

Audio I/O

1 Input: impedance 1 k OHM, amplitude 2.5 V [p-p], 1 Output: impedance 600 OHM, amplitude 2.5 V

[p-p]

Alarm I/O

1/1

Built-in Mic

Support

Built-in Speaker

Support

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

EMC

CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130)

FCC SDoC (47 CFR Part 15; Subpart B)

Safety

UL (UL 62368-1)

CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1)

Environment

CE-ROHS (2011/65/EU;(EU)2015/863)

Protection

IP66 (IEC 60529)

General

Power

DC 12 V±25%, PoE (IEEE 802.3at)

Working Environment

-30 C to 60 C (-22 F to 140 F), Humidity: </= 95% RH (non-condensing)

Storage Environment

-40 C to 70 C (-40 F to 158 F), Humidity: </= 95% RH (non-condensing)

Surge Protection

2 KV

Reset Button

Support

Material

Metal

Web Client Language

22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic,

Slovak

Heater

Support

Live View

Maximum Bitstream

35

OSD Color

Support

OSD Character Number

40
