Data Sheet

Code du produit:

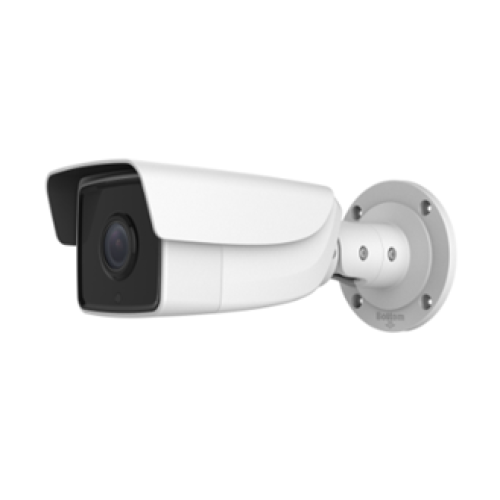

NC324G2-XB-8

Résumé:

4MP, 2688x1520, @30fps, H.265+, 120dB WDR, Day/Night, 0.005 Lux @F1.6, Face Detection, Intrusion, Tripwire, Human/Vehicle, IR up to 60m (197ft), MicroSD slot, 8mm Fixed Lens, DC12V, PoE, IP67, Optional: DS-1260ZJ

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)

Camera

Image Sensor

1/3 Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Day & Night

ICR Cut

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°

Aperture

F1.6

Lens Mount

M12

DORI

DORI


4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m


Illuminator

IR Range

-2I: up to 60 m


Wavelength

850 nm

Video

Max. Resolution

2688 × 1520

Main Stream

50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 480, 640 × 360)
60Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main Stream supports

H.265+

Main Stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

On-board Storage

Built-in micro SD, up to 256 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Smart Feature-Set

Basic Event

Motion detection (human and vehicle), video tampering alarm, exception

Smart Event

Line crossing detection, intrusion detection

Face Detection

Yes

General

Linkage Method

Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture,Email

Web Client Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Software Reset

Yes

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3

Power Consumption and Current

-2I:
12 VDC, 0.71 A, max. 8.5 W
PoE (802.3af, 36 V to 57 V), 0.27 A to 0.17 A, max. 9.5 W
-4I:
12 VDC, 1.0 A, amx. 11.5 W
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W

Power Interface

Ø5.5 mm coaxial power plug

Material

Aluminum alloy body
Sun shield, IR cover: plastic

Camera Dimension

Ø105 × 293 mm (Ø4.13 × 11.53)

Package Dimension

386 × 156 × 155 mm (15.2" × 6.2" × 6.2")

Camera Weight

Approx. 1070 g (2.4 lb.)

With Package Weight

Approx. 1589 g (3.5 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
