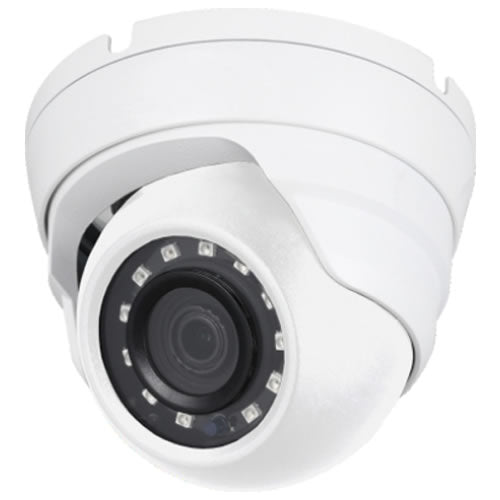

5MP IR Mini Eyeball Network Camera with 2.8mm lens
5MP IR Mini Eyeball Network Camera with 2.8mm lens
Model: IP-5EB-F36-SAL
Regular price
$187.05
Sale price
$187.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
5MP Eyeball Camera
Up to 2592×1944@15fps
2.8mm Fixed Lens
Horizontal FOV:96°, Vertical FOV: 70°
Couldn't load pickup availability
- 5MP Eyeball Camera
- Up to 2592×1944@15fps
- 3.6mm Fixed Lens
- Horizontal FOV:96°, Vertical FOV: 70°
- 3-Axis
- IR Range up to 98ft
- H.265+/H.265/ H.264
- Color: 0.03 Lux@f/2
- B/W: 0Lux @ f/2
- True WDR 120dB
- 3D DNR, BLC
- IP67
- MicroSD Slot up to 128GB
- DC 12V, PoE/ePoE
Optional
Junction Box: GX-HT-BK-JB81X or GX-HT-BK-JB80X
Wall Mount: GX-HT-BK-WM09D
| Image Sensor | 1/2.7" 5Megapixel progresive CMOS |
| Effective Pixels | 2592(HI x1944(V) |
| RAM/ROM | S12MB/32MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/31/100000s |
| Minimum Illumination S/N Ratio | 0.03Lux/F2.0( CoIor,1/3s,30IRE], 0.3Lux/2.Of CoIor,1/30s,3OIRE), 0Lux/F2.0(IR on) More than50dB |
| IR Distance | 0Lux/F2.0(IR on) More than50dB |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 12 |
| S/N Ratio | More than 50dB |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | IP-5EB-F28-SAL (2.8mm)/ IP-5EB-F36 -SAL (3.6mm) |
| Max Aperture | F2.0/F2.0 |
| Angle of View | H:96*/78*, V:70*/58* |
| FOCUS CONTOL | FIXED | |||||||||||||||
| Close Focus Distance | n/a | |||||||||||||||
| DORI Distance |
| |||||||||||||||
| Pan/Tilt Range | Pan:0° -360° ;TiIt:0 -90° ;Rotation:0 -360 | |||||||||||||||
| IVS | Tripwire, Intrusion | |||||||||||||||
| Compression | H.265+/H.265/H.264*/H.264 | |||||||||||||||
| Compression Streaming Capability | 2 Streams | |||||||||||||||
| Resolution | SM(2592x1944)/4M{2688x1520/256Ox144O)/3M(2304 x1296)/1O8OP(192Ox1OBO)/72OP(12BOx720)/ DI(704 576/7O4480)/ VGA(640480)/ CIF(352 288/352 240) | |||||||||||||||
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265. 12K 8448Kbps H.264: 32K l0240Kbps |
| Day/Night | Auto(IR-Cut) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB) |
| Frame Rate | 5MT1 - 20fps)/3M (1 25/30fps) DI/CIF(1 25/3Ofps) |
| White Balance | Auto/Natural/Street/;amp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Region of Interest | PFF/ON(4 zone) |
| Electronic Image Stabilization (EIS) | N/A |
| Smart IR | support |
| Mirror | Off / On |
| Privacy Masking | Off /On (4 Area, Rectangle) |
| Flip | 0*/90/180*/270* |
| Compression | N/A |
| Motion Detection | OFF/ON(4 Zone, Rectangle) |
| Digital Zoom | 16x |
| ethernet | RJ-45(10/100Base-T) |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 10 Users/ 20 Users |
| Edge Storage | NAS Local PC for instant recording |
| Web Viewer | IE/Chrome/Firefox/Safari |
| Protocol | HTTF;TCP;ARP: RTSP ;RTP;U DF;R"CF;SMTF;FTF;DHCP ;DNS;DDN?;PPPOE; lpv4/IPV6;SNMP;QoS; Upnp; NTP |
| Interoperability | ONVIF,PSIA,CGI |
Certifications | CE D(EN 60950 2000) FCC:FCC part 15 Subpart B |
| Management Software | Unisight VMS |
| Smart Phone | IOS,Android |
| Video InterfaceC | N/A |
| Audio Interface | N/A |
| RS485 | N/A |
| Alarm | N/A |
| Power Supply | DC12V PoE (802.3af)(Class 0) |
| Power Consumption | <4W |
| Operating Conditions | -30 c + 60 c (-22 f - 140f)/Less than 95% RH |
| Storage Conditions | -30 c + 60 c (-22 f - 140f)/Less than 95% RH |
| Ingress protection | ip67 |
| Vandal Resistance | N/A |
| Casing | Metal + Plastic |
| Dimensions | 108mmx84.9mm(4.25x3.15) |
| Net Weight | 0.23kg(0.51lb) |
| Gross Weight | 0.387kg(0.85lb) |
