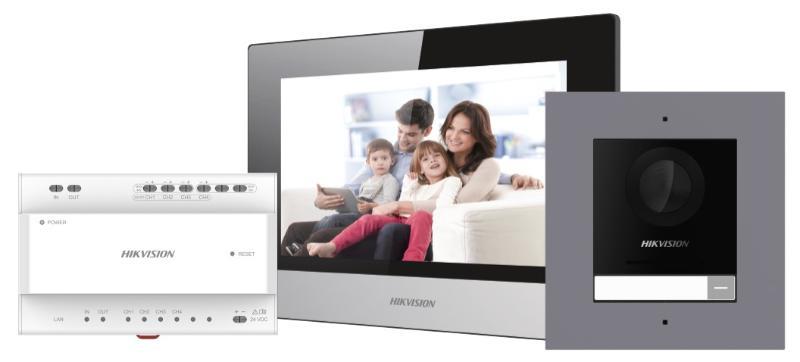

Hikvision OEM 2-wire Intercom Kit
Hikvision OEM 2-wire Intercom Kit
Model: GX-KIS702Y-P
Available in stock
Send a copy to email:
Open here
Couldn't load pickup availability
- 2-wire digital IP video intercom bundle for villa or house
- One call button for easier calls
- Including: DS-KD8003Y-IME2/Surface × 1, DS-KH6320Y-WTE2 × 1, DS-KAD704Y × 1, PSU × 1, 16GB TF card × 1
- Power adapter included in the package
|
Door station |
|
|
Processor |
Embedded microcontroller |
|
Operation system |
Embedded Linux operation system |
|
Operation mode |
One touch key |
|
Door station |
|
|
Camera |
2MP super definition camera |
|
Resolution |
Main stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480 |
|
Night vision |
Support low light and IR light supplement mode |
|
Backlight compensation |
Support |
|
Digital noise reduction |
Support |
|
WDR |
True WDR |
|
Field of view |
Horizontal 146°, vertical 82° |
|
Video Compression Standard |
H.264 |
|
Stream |
Main stream: 1080p@30fps, 720p@30fps (configurable); sub stream: D1 |
|
Motion detection |
Support |
|
Flash-avoid frequency |
50 Hz, 60 Hz |
|
Door station |
|
|
Audio input |
Built-in omnidirectional microphone |
|
Audio output |
Loudspeaker, 20 cm sound effect > 80 db |
|
Audio quality |
Noise suppression and echo cancellation |
|
Audio compression standard |
G.711 U |
|
Audio compression Rate |
64 Kbps |
|
Audio intercom |
Full-duplex two-way audio intercom |
|
Door station |
|
|
Network Protocol |
TCP/IP, RTSP, IPV6, ONVIF |
|
Door station |
|
|
RS-485 |
1 (1 for Hikvision's sub module communication) |
|
Debugging port |
1 |
|
Alarm input |
4 (2 exit butttons and 2 door contacts by default) |
|
Lock control |
2 (2 relay, max to 30 VDC, 2 A) |
|
TAMPER switch |
1 |
|
Power interface |
Two-wire |
|
Door station |
|
|
Working temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
|
Working humidity |
10% to 90% |
|
Dimension |
100 mm × 98 mm × 42 mm (3.94" × 7.8" × 1.65") |
|
Installation |
Wall mounting |
|
Protection level |
IP 65 |
|
Button |
1 |
|
Power input |
Powered by KAD704Y or KAD706Y series distributor |
|
Indoor station |
|
|
Operation system |
Embedded Linux operation system |
|
Memory |
128 MB |
|
Flash |
32 MB |
|
Indoor station |
|
|
Display screen |
7-inch TFT LCD |
|
Display resolution |
1024 × 600 |
|
Operation method |
Capacitive touch |
|
Indoor station |
|
|
Audio input |
Built-in omnidirectional microphone |
|
Audio output |
Built-in loudspeaker |
|
Audio quality |
Noise suppression and echo cancellation |
|
Volume |
Local or software control |
|
Audio compression standard |
G.711 U, G.711 A |
|
Audio compression Rate |
64 Kbps |
|
Indoor station |
|
|
Wired network |
Two-wire network |
|
Wireless network |
Wi-Fi 802.11b/g/n |
|
Protocol |
TCP/IP, SIP, RTSP |
|
Indoor station |
|
|
Network interface |
Two-wire interface |
|
RS-485 |
1 |
|
Alarm input |
8 zones alarm input |
|
Relay output |
2（30 V Max.） |
|
TF card |
Support, Max. 128 GB |
|
Indoor station |
|
|
Power supply |
Powered by KAD704Y or KAD706Y distributor |
|
Power consumption |
≤ 4 W |
|
Working temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
|
Working humidity |
10% to 90% |
|
Dimensions (W × H × D) |
200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93") |
|
Video Audio Distributor |
|
|
Network interface |
1 RJ45 |
|
Two-wire interface |
6 (2 for cascading and 4 for devices) |
|
Signal indicator |
6 |
|
Power indicator |
1 |
|
Reset |
1 |
|
Video Audio Distributor |
|
|
Power supply |
24 VDC |
|
Power consumption |
CH1 to CH3＜4 W, CH4＜8 W |
|
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working humidity |
10% to 90% |
