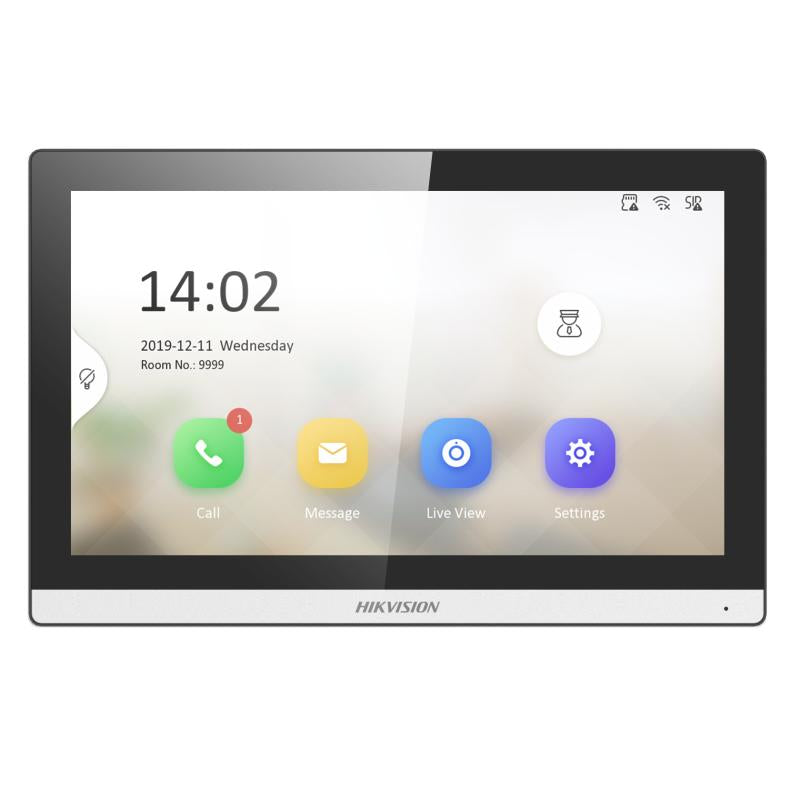

Hikvision OEM Intercom 19" indoor monitor with wifi
Hikvision OEM Intercom 19" indoor monitor with wifi
Model: GX-KH9510-WTE1(B)
Available in stock
Send a copy to email:
Open here
Couldn't load pickup availability
- 7-inch TFT touch screen with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
|
System parameters |
|
|
Operation system |
Linux |
|
ROM |
32 MB |
|
RAM |
128 MB |
|
Processor |
Embeded high performance processor |
|
Display parameters |
|
|
Screen size |
7-inch |
|
Operation method |
Capacitive touch screen |
|
Type |
Colorful TFT |
|
Resolution |
1024 × 600 |
|
Video parameters |
|
|
Lens |
/ |
|
Resolution |
/ |
|
FOV |
/ |
|
Wide dynamic range (WDR) |
/ |
|
Video compression standard |
H.265；H.264 |
|
Focal length |
/ |
|
Audio parameters |
|
|
Audio input |
1 built-in omnidirectional microphone |
|
Audio compression standard |
G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
|
Audio output |
1 built-in loudspeaker |
|
Audio compression bitrate |
64 Kbps |
|
Audio quality |
Noise suppression and echo cancellation |
|
Volume adjustment |
Adjustable |
|
Capacity |
|
|
Message capacity |
TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
|
Notice capacity |
200 |
|
Linked indoor extensions capacity |
16 |
|
Linked doorphone capacity |
17 |
|
Network parameters |
|
|
Network protocol |
TCP/IP, SIP, RTSP |
|
Wi-Fi |
2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
|
Bluetooth |
/ |
|
3G/4G |
/ |
|
Zigbee |
/ |
|
Device interfaces |
|
|
Alarm input |
8 |
|
Network interface |
1 RJ-45 10/100 Mbps self-adaptive |
|
TAMPER |
/ |
|
RS-485 |
1 RS-485 (Half duplex) |
|
USB |
/ |
|
TF card |
Support TF card, up to 128 G |
|
Alarm output |
2 |
|
Lock control |
2 relays, Max. 30 VDC 0.3 A |
|
General |
|
|
Button |
/ |
|
Installation |
Wall mounting, table mounting |
|
Indicator |
/ |
|
Weight |
Net weight: 355 g (0.8 lb) Gross weight: 683 g (1.5 lb) |
|
Protective level |
/ |
|
Working temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
|
Working humidity |
10% to 90% (no-condensing) |
|
Dimension (W × H × D) |
175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83") |
|
Battery |
/ |
|
Application environment |
Indoor |
|
Power consumption |
≤ 5 W |
|
Language |
English, Arabic, French, Russian, Spanish, Spanish (Latin Ameri ca), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
|
Power supply |
12 VDC, 1 A,IEEE802.3af, Standard PoE |
