Data Sheet

Code du produit:

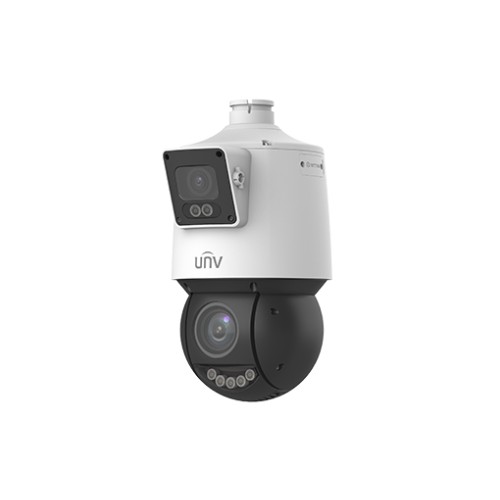

IPC94144SFW-X25-F40C

Résumé:

4MP 25x Network PTZ Dual-lens, PoE, Starlight, warm light, Smart Function, Enhanced harness, Fixed lens:1/1.8", 4MP, 4mm@F1.0, Up to 30m warm light range, PTZ:1/2.7"", 4MP, 4.8~120mm@F1.5, 25x optical zoom, Up to 100m IR range, Ultra 265, H.265, H.264, MJPEG, -40℃ ~ 70℃, IP66, 6KV, DC12V (±25%), PoE+(IEEE 802.3at)" Recommended mounts (TR-WE45-A-IN)


• Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
• Ultra 265, H.265, H.264, MJPEG
• 25X optical zoom of PTZ channel allows for closer viewing of subjects
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
• Support light warning, makes warning and alarming more noticeable
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• IR & warm light illumination to deal with different scenes and achieve full-color illumination
• DC12V or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out

  IPC94144SFW-X25-F40C
Camera Panorama Detail
Sensor 1/1.8", 4MP, CMOS 1/2.7", 4MP, CMOS
Min. Illumination Color:0.0005 lux (F1.0, AGC ON)
0 lux with warm light
Color:0.003 lux (F1.5, AGC ON)
0 lux with IR
Day/Night N/A IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens
Lens type 4mm@F1.0 4.8~120mm@F1.5,
AF automatic focusing and motorized zoom lens
Optical Zoom N/A 25X
Iris Fixed aperture; F1.0 Auto; F1.5(W)~F3.8(T)
Field of View (H) 94.9° 55.46° ~ 3.09°
Field of View (V) 51.5° 32.94° ~ 1.73°
Field of View (D) 116.7° 68.22° ~ 3.65°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4 (Panorama) 62.1 (203.6 ft) 24.8 (81.5 ft) 12.4 (40.7 ft) 6.2 (20.4 ft)
4.8 (Detail) 123.8 (406.0 ft) 49.5 (162.4 ft) 24.8 (81.2 ft) 12.4 (40.6 ft)
120 (Detail) 2475.0 (8120.1 ft) 990.0 (3248.0 ft) 495.0 (1624.0 ft) 247.5 (812.0 ft)
Illuminator
IR Range N/A Up to 100m (328.1 ft)
Warm Light Range Up to 30m (98.4 ft) N/A
Wavelength N/A 850nm (IR)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4MP (2688*1520),Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Main Stream: 4MP (2688*1520),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate 128 Kbps ~ 16 Mbps
U-code Support
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas per scene 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital defog
Intelligent
Smart Intrusion Prevention Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
People Counting Support people flow counting and crowd density monitoring
Linkage Function Support. Triggered by fixed lens via smart intrusion prevention function to track target N/A
Events
Basic Detection Motion detection, Audio detection, Tampering Alarm
Auto Tracking N/A Support
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range N/A 360°
Pan Speed N/A 0.1°/s ~ 80°/s
Preset speed: N/A Preset speed: 80°/s
Tilt Range 18° ± 5° -15° ~ 90°
Tilt Speed N/A 0.1°/s ~ 80°/s
Preset speed: N/A Preset speed: 80°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s~1800s
Preset Image Freeze N/A
Home Position Support
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker Support
Wi-Fi N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC12V (±25%), PoE+(IEEE 802.3at)
Power consumption: MAX 24W
Power Interface  5.5mm coaxial power plug
Dimensions (Ø x H) 163 x 304mm (6.4 x 12.0)
Weight 2.27kg (5.00lb)
Working Environment -40C ~ +65C(-40°F ~ +149F),Humidity: </=95% RH (non-condensing)
Storage Environment -40C ~ +70C(-40°F ~ +158F),Humidity: </=95% RH (non-condensing)
Surge protection 6KV
Reset button Support
