Data Sheet

Product Code:

SED-BALUN-HD708

Summary:

Real-time transmission over UTP cat5e/6, Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras, Power signal up to 200m (656ft), Male BNC with extended 5.9inch (150mm) mini-coax pigtail, RJ45 Jack for UTP cable

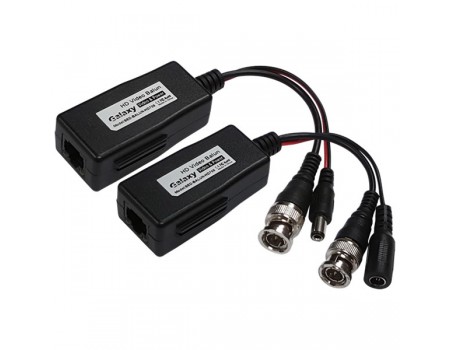

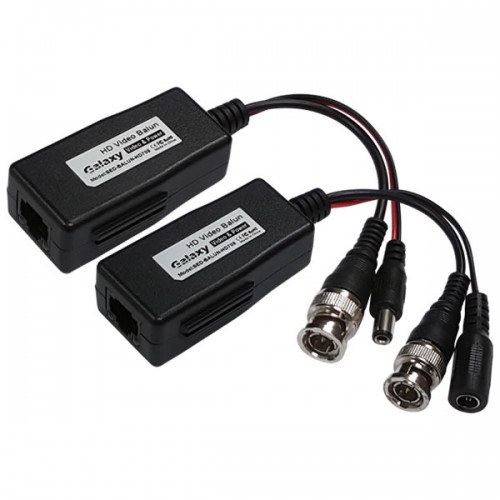

The SED-BALUN-HD708 is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective Unshielded Twisted Paired (UTP) cable. The SED-BALUN-HD708 is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

The SED-BALUN-HD708 has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Used in pairs, the SED-BALUN-HD708 eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the SED-BALUN-HD708 allow video & power signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The SED-BALUN-HD708 is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.


Wire and Cable Recommendations

The SED-BALUN-HD708 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG..Individually shielded pairs should be avoided, as they reduce the operating range of the systems drastically. Multi-pair cable (25-pair or more) with an overall shield are acceptable. Video signals can coexist in the same wire bundle as telephone, datacom, or low-voltages power circuits. While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair.

For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.

  • Real-time transmission over UTP cat5e/6
  • Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
  • Color video max up to 190m (623ft) for HD-TVI 720P camera
    Color video max up to 190m (623ft) for HD-TVI 1080P camera
    Color video max up to 200m (656ft) for HD-TVI 3MPX camera
  • Color video max up to 440m (1443ft) for HD-CVI 720P camera
    If you adjust saturation of DVR, max up to 470m (1541ft)
    Color video max up to 230m (754ft ) for HD-CVI 1080P camera
    Color video max up to 230m (754ft ) for HD-CVI 4MPX camera
  • Color video max up to 320m (1049ft) for HD-AHD 720P camera
    Color video max up to 320m (1049ft) for HD-AHD 960P camera
    Color video max up to 250m (820ft) for HD-AHD 1080P camera
    Color video max up to 180m (590ft) for HD-AHD 3MPX camera
    Color video max up to 200m (656ft ) for HD-AHD 4MPX camera
    Color video max up to 200m (656ft ) for HD-AHD 5MPX camera
  • Color video max up to 400m (1312ft) for CVBS camera
  • Power signal up to 200m (656ft)
  • Male BNC with extended 5.9inch (150mm) mini-coax pigtail
  • RJ45 Jack for UTP cable
  • Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
  • Wave Filter Design, Anti-Static Design
  • Lightning protection design Grade: III
  • 60 dB crosstalk and noise immunity
  • Exceptional interference rejection
  • ABS engineering plastic housing
ModelSED-BALUN-HD708
Product NameSingle Channel HD Video & Power Transmitter & Receiver
Applied DevicesCCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
VideoVideo FormatHD-TVI/CVI/AHD/CVBS
Operating FrequencyDC to 42MHz
Max DistanceHD-CVI 720P 440m(1443ft)HD-CVI 1080P 230m(754ft)HD-CVI 4MPX 230m(754ft)
HD-TVI 720P 190m(623ft)HD-TVI 1080P 190m(623ft)HD-TVI 3MPX 200m( 656ft)
HD-AHD 720P 320m(1049ft)HD-AHD 960P 320m(1049ft)HD-AHD 1080P 250m(820ft)HD-AHD 3MPX 180m(590ft)HD-AHD 4MPX 200m(656ft )HD-AHD 5MPX 200m(656ft )
Common-mode/Differential-mode rejection15KHz to 42MHz    60 dB typ
ImpedanceCoax: Male BNC  75ohm unbalanced
UTP:RJ45 100ohm balanced
Attenuation1.5 dB typ Max
Wire TypeNetwork WiringOne Unshielded Twisted Pair (for each video signal)  24-16 AWG (0.5-1.31mm)
Category TypeUTP cat 5e/6
Impedance100 +/- 20 ohms
DC Loop Resistance52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance19 pF/ft max (62 pF/m max)
PowerPower Input12V/24V,DC/AC
Power transmission12V/24V,DC/AC, via UTP cat5e/6. please refer to power distance chart above
ConnectorVideo input/outputMale BNC connector
Video input/outputRJ45 Jack
ProtectionSurge Protectionrenewable solid state surge protection
Video Input2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)
Video Output2KV(different mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)
MechanicalHousingABS engineering plastic
Body ColorBlack
Dimensions(L*W*H)60.4*29*20.4mm (BNC connector & cable excluded)
Net Weight60g
EnvironmentalOperating Temperature-20deg. ~ 70deg. C
Relative Humidity0~95% (non-condensing)
Storage Temperature-40deg. ~ 150deg. C
  • Security Monitoring System
  • Multimedia Network Teaching System
  • Medical Monitoring Display System
  • Industrial Automation Control System
  • Banking, securities, financial information display system
  • Remote Network Server Monitoring
  • Department Store Security
  • Casino Security
  • Hospitals, Airports and banks
  • School Campuses

Application Diagram

...

Note

  1. The actual transmission distance will vary according to specific camera, DVR and on-site environment
  2. Please make sure to install transmitter at camera side and receiver at DVR side to achieve best video quality
  3. If you adjust saturation of DVR, video transmission distance could be farther (HD-CVI 720P: max up to 470m(1541ft)
  4. If chromatic aberration occurs, please also adjust saturation, the picture will recover perfectly automatically.
  5. The device is not waterproof and not to be used at outdoors
