Data Sheet

Product Code:

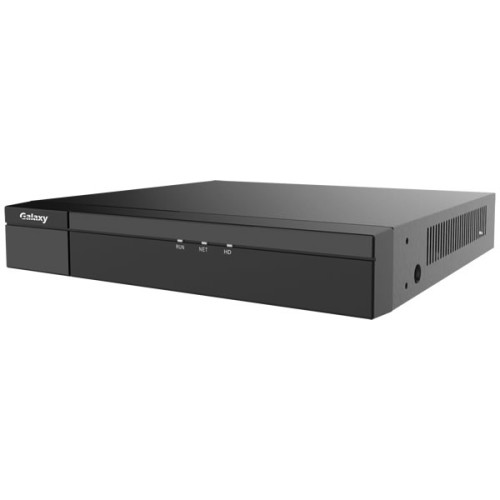

GX-CV-NVR8104-P4N

Summary:

H.265, 4CH, 4K/8MP POE Lite NVR with 1pc HDD, 4K HDMI/VGA simultaneous, Audio, 40M Input, Support 1 SATA HDD up to 6TB, Cloud Upgrade, 1 RJ-45 10M/100M, 4CH VCA

  • Support Ultra 265/H.265/H.264 video formats
  • 4/8-channel input
  • Plug & Play with 4/8 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 8MP resolution recording
  • 1 SATA HDD up to 6TB
  • Support cloud upgrade

Model

GX-CV-NVR8104-P4N

GX-CV-NVR8108-P8N

Video/Audio Input

IP Video Input

4-ch

8-ch

Network

Incoming Bandwidth

40Mbps

50Mbps

Outgoing Bandwidth

40Mbps

40Mbps

Remote Users

128

Protocols

P2P, UPnP, DHCP

Video/Audio Output







HDMI/VGA Output

HDMI:

3840x2160/30Hz , 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1440x900/60Hz,

1280x720/60Hz, 1024x768/60Hz VGA:

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1280x720/60Hz,

1024x768/60Hz

Audio Output

1-ch, RCA

Recording Resolution

8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF

Synchronous Playback

4-ch

8-ch

Corridor Mode Screen

3/4

3/4/5/7/9

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF

Capability

1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30

Hard Disk

SATA

1 SATA interface

Capacity

up to 6TB for each disk

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

PoE

Interface

4 RJ45 10M/100M self-adaptive Ethernet Interface

8 RJ45 10M/100M self-adaptive Ethernet Interface



Max Power

Max 30W for single port

Max 54W in total

Max 30W for single port

Max 75W in total

Supported Standard

IEEE 802.3at, IEEE 802.3af

General



Power Supply

48V DC

Power Consumption: </= 9 W (without HDD)

52V DC

Power Consumption: </= 9 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity </= 90% RH (non-condensing)

Dimensions (W×D×H)

260mm × 243mm × 46mm (10.2" × 9.6" × 1.8")



Weight (without HDD)

</= 1.2kg (2.65

lb)
