Data Sheet

Product Code:

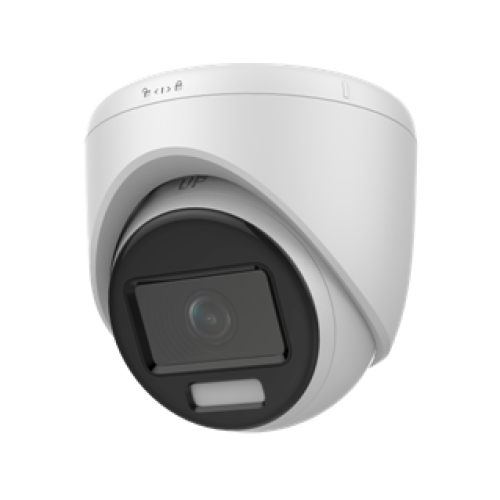

AC348-FD/F-3.6

Summary:

8MP, 3840x2160@30fps, 130dB WDR, Motion Detection, Day/Night, 0.0005 Lux@F1.0, White Light up to 40m (131ft), 2.8mm Fixed focal Lens, DC12V, IP67, Optional:DS-1280ZJ-S, DS-1272ZJ-110-TRS

  • High quality imaging with 8 MP, 3840 × 2160 resolution
  • 24/7 color imaging
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 40 m white light distance for bright night imaging
  • Water and dust resistant (IP67)

Specification

Image Sensor

8 MP CMOS

Signal System

PAL/NTSC

Resolution

3840 (H) × 2160 (V)

Frame Rate

TVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps

Min. Illumination

0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s

Lens

2.8 mm, 3.6 mm fixed focal lens

Field of View

2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131°
3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113°

Lens Mount

M16

Light Alarm

Solid Light Alarm (White Light)

Day & Night

Color

WDR (Wide Dynamic Range)

>/=130 dB

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Menu

White Light

Auto/Off

Image Mode

STD/HIGH-SAT/HIGHLIGHT

AGC

Yes

Day/Night Mode

Color

White Balance

Auto/Manual

AE (Auto Exposure) Mode

WDR, BLC, HLC, Global, HLS

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

Noise Reduction

3D DNR/2D DNR

Language

English

Function

Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light

Interface

Video Output

1 HD analog output

General

Operating Conditions

-40°C to 50°C (-40°F to 130°F), Humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%/PoC.at
*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

Consumption

Max. 5.1 W

Protection Level

IP67

Material

Main body: Metal, Enclosure: Plastic

White Light Range

Up to 40 m

Communication

HDCAM-C

Dimension

194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")

Weight

Approx. 350 g (0.77 lb.)
