Data Sheet

Product Code:

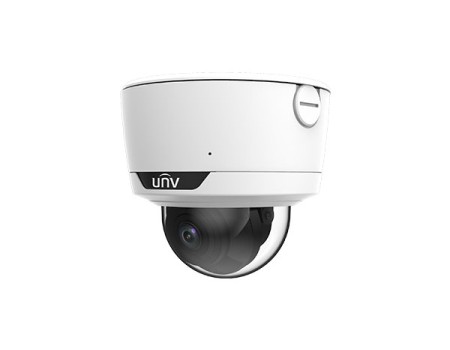

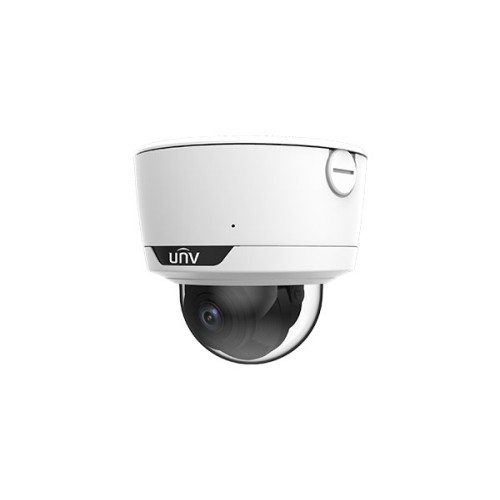

IPC3734SE-ADZK-I0

Summary:

4MP, 120dB WDR, IP67&IK10, Mic,Starlight, Smart functions, -40 degree working, 1/1.8" CMOS, ICR, 4MP (2688*1520), Max 30fps;Ultra 265/H.265/H.264/MJPEG, Triple streams ,DC12V & PoE, 120dB WDR, 2.8-12 mm motorized lens, IR range: up to 40m, Micro SD card slot,starlight, 0.0005 Lux min. illumination,BNC

• High quality image with 4MP,1/1.8’’ CMOS sensor
• 2688*1520@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in heater, support normal start-up at low temperature
• DC12V or PoE (IEEE 802.3af) power supply
• Wide voltage range of ±25% in DC
• Audio 1 in and 1 out, Alarm 2 in and 1 out

  IPC3734SE-ADZK-I0
Camera
Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
Min. Illumination Colour:0.0005 lux (F1.2, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
WDR 120dB
S/N >56dB
Lens
Lens type 2.8~12mm@F1.2, AF automatic focusing and motorized zoom lens
Iris Fixed
Field of View (H) 42.6°~113.7°
Field of View (V) 24.1°~59.0°
Field of View (D) 4.12°~74.38°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 68.0(223.0ft) 27.2(89.2ft) 13.6(44.6ft) 6.8(22.3ft)
12 166.2(545.2ft) 66.5(218.1ft) 33.2(109.0ft) 16.6(54.5ft)
Illuminator
IR Range Up to 40m (131 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas per scene
Media Stream Unicast/Multicast
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Defog Digital Defog
Corridor Mode Support
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
People counting Support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Audio detection, Tampering alarm
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
Built-in Heater Support
Video output 1 BNC
Network 1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
Power DC12V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 10W
Dimensions (Ø x H)  162mm x 149mm(6.4’’ x 5.9’’)
Weight 1.5Kg(3.31lb)
Working Environment -40C ~ 60C (-40F ~ 140F), Humidity: </=95% RH (non-condensing)
Storage Environment -40C ~ 70C (-40F ~ 158F), Humidity: </=95% RH (non-condensing)
Surge protection 6KV
Reset button Support
