Data Sheet

Product Code:

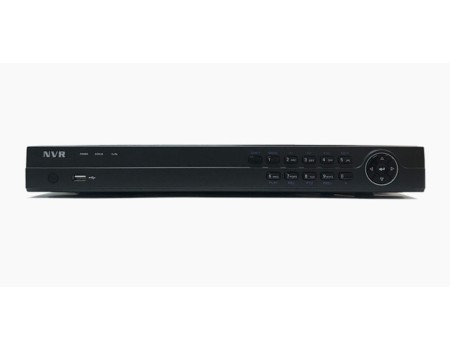

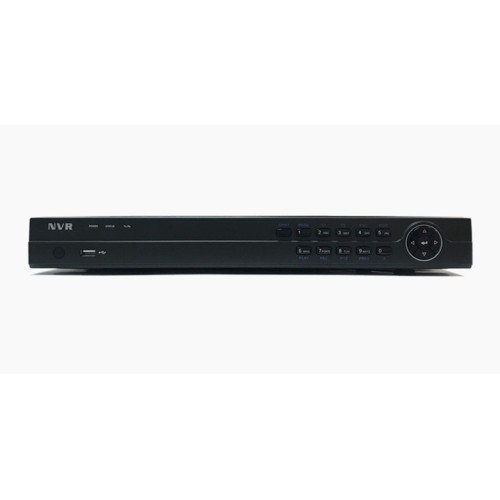

NR32P4-4C

Summary:

4CH, 8MP, 40Mbps, H.265+, 1CH/8 MP@30 fps, 1 x HDMI, 1x VGA, 1x RJ45 10/100M, Audio 1in/1out, Alarm 4in/1out(optional), 1SATA up tp 8TB, 2x USB2.0, 1U

  • Professional and Reliability
    • H.265+ compression effectively reduces the storage space by up to 75%
  • HD Video Output
    • Provide simultaneous HDMI and VGA outputs
    • HDMI video output at up to 4K resolution
  • Storage and Playback
    • 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
    • Smart search/smart playback to improve the playback efficiency
  • Smart Function
    • Support multiple VCA (Video Content Analytics) events
    • Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.) and ANPR
  • Network & Ethernet Access
    • 4 independent PoE network interfaces
    • 1 self-adaptive 10/100 Mbps Ethernet interface
    • Hik-Connect for easy network management

Model

NR32P4-4C

Video and Audio

IP video input

4-ch

Up to 8 MP resolution

Incoming bandwidth

40 Mbps

Outgoing bandwidth

80 Mbps

HDMI output

1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K(2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video output mode

HDMI/VGA simultaneous output

CVBS output

N/A

Audio output

1-ch, RCA (Linear, 1 K Ohm)

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 K Ohm, using the audio input)

Decoding

Decoding format

H.265+/H.265/H.264+/H.264

Recording resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback

4-ch

Capability

1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

Stream type

Video, Video & Audio

Audio compression

G.711ulaw/G.711alaw/G.722/G.726

Network

Remote connection

16

Network protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

Interface

4, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

</=50W

Supported standard

IEEE 802.3 af/at

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 8TB capacity for each disk

Alarm in/out¹

N/A (4/1 is optional)

USB interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

General

Power supply

48VDC, 1.35 A

Consumption

(without HDD and PoE off)

</= 10 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

320× 240 × 48 mm (12.6" × 9.4" × 1.9")

Weight (without HDD)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
