Data Sheet

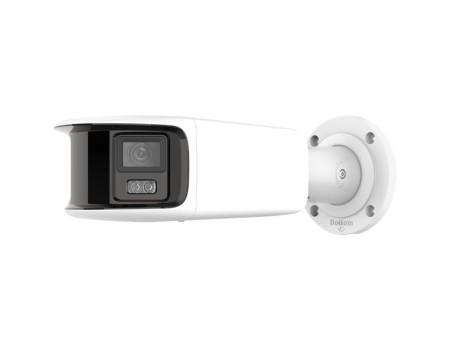

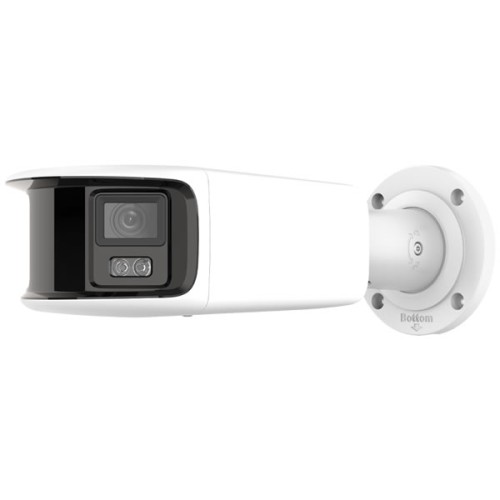

Product Code:

NC348G2P-XB/LU/SL

Summary:

8MP, 5210x1440@20fps, 130dB WDR, H.265+, 0.0005 Lux@F1.0, Day/Night, Intrusion, Tripwire, Human/Vehicle, White Light up to 40m (131ft), Built-in Mic/Speaker, Audio, Alarm, MicroSD slot, 2 x 4mm Fixed Lens, DC12V, PoE, IP67, Optional:DS-1275ZJ-S-SUS, DS-1260ZJ, DS-1276ZJ-SUS, DS-1260ZJ-AC#SA, DS-1280ZJ-S, DS-1275ZJ-SUS

  • High quality imaging with 8 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Water and dust resistant (IP67)

Specification



Camera

Image Sensor

2 × 1/1.8" Progressive Scan CMOS

Max. Resolution

5120 × 1440

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time

1/3 s to 1/100, 000 s

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, dual lens: 4 mm

Focal Length & FOV

Horizontal FOV: 180° ± 10°
Vertical FOV: 44°

Lens Mount

M16

Iris Type

Fixed

Aperture

F1.0

Depth of Field

3.6 m to Inf

DORI

DORI

4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

Video

Main Stream

When WDR is On:
50 Hz: 12.5 fps (5120 × 1440)
60 Hz: 15 fps (5120 × 1440)
When WDR is Off:
50 Hz: 20 fps (5120 × 1440)
60 Hz: 20 fps (5120 × 1440)

Sub-Stream

When WDR is On:
50 Hz: 12.5 fps (1920 × 536, 960 × 272)
60 Hz: 15 fps (1920 × 536, 960 × 272)
When WDR is Off:
50 Hz: 20 fps (1920 × 536, 960 × 272)
60 Hz: 20 fps (1920 × 536, 960 × 272)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region(s) for main stream

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR,
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11 ,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters Switch

Yes

Image Settings

saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

130 dB

SNR

>/= 52 dB

Image Enhancement

BLC, HLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB

Built-in Microphone

Yes

Built-in Speaker

Max. power consumption: 1 W, max. sound pressure: 10 cm: 97 dB

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K Ohm, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ohm, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC, 1 A)

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))

General

Power

12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W

Material

Front cover: metal, body: metal, bracket: metal

Dimension

118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12")

Package Dimension

405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")

Weight

Approx. 1420 g (3.1 lb.)

With Package Weight

Approx. 2228 g (4.9 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password reset via email, password protection, one-key reset

Flashing Light

Yes

Approval

EMC

FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7

Safety

UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
