Data Sheet

Product Code:

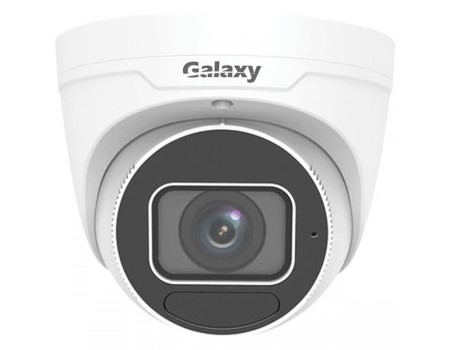

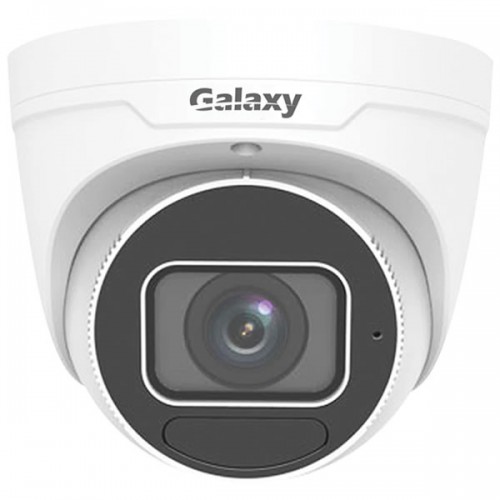

SC-3H85FWD-I0Z

Summary:

8MP, 3840x2160@20fps, Ultra265, Triple Streams, 0.003Lux@F1.6, 120dB WDR, 3D DNR, Day&Night (ICR), IR up to 131ft (40m), Micro SD Card Slot, Built-in Mic, Intrusion Prevention, Human & Vehicle, IP67, IK10, 2.8~12mm Motorized VF Lens, DC12V / PoE Optional Junction Box: GX-BK-JB80X / Wall Mount: GX-BK-WME03

• High quality imaging with 8MP, 1/2.8"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply

Camera
Sensor1/2.8", 8.0 megapixel, progressive scan, CMOS
Lens2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.886.934.817.48.7
12372.4149.074.537.2
Angle of view (H)107.4°~ 29.2°
Angle of View (V)54.2°~ 16.3°
Angle of View (O)111.0°~33.1°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 75°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.003Lux (F1.6, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital Noise Reduction2D/3D DNR
S/N>56dB
IR RangeUp to 40m (131ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile
Frame RateMain Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingSupported
HLCSupported
BLCSupported
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Built-in MicSupported
Network1 RJ45 10M/100M Base-TX Ethernet
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 9.0W
Dimensions (Ø x H)?129 x 110mm (Ø5.1” x 4.3”)
Net Weight0.69kg (1.52lb)
MaterialMetal
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Surge Protection6KV
Ingress ProtectionIP67
Vandal ResistantIK10
Reset ButtonSupported
