Data Sheet

Product Code:

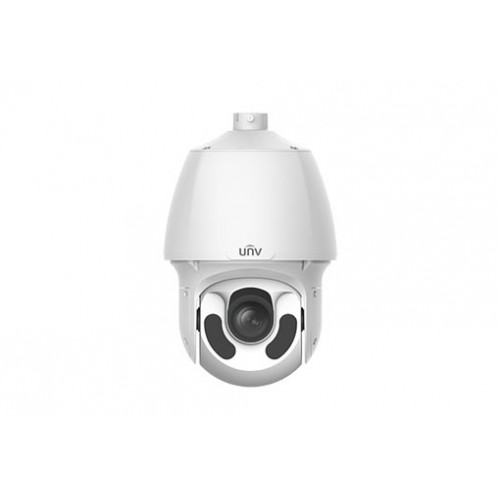

IPC6622SR-X33-VF

Summary:

2MP, 1920x1080, @60fps, Ultra265, 120dB WDR, People Counting, Intrusion Prevention, Tripwire, IR, up to 150m (492ft), Audio, Alarm, MicroSD slot, OSD/UTC, IP66, Auto Tracking, 4.5-148.5mm Lens, 33X, Motorized VF, DC24V, Wall Mount: AE-TR-WE-45-A

-High quality image with 2MP,1/2.8’’ CMOS sensor
-1920*1080@60fps in the main stream
-Ultra 265, H.265, H.264, MJPEG
-Triple streams
-33X Optical Zoom
-Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
-Face capture, automatic selection of best snapshots
-Lighthunter technology ensures ultra-high image quality in low illumination environment
-Smart IR, up to 150m (492 ft) IR distance
-AC 24V±25%, DC 24V±25% or PoE power supply
-Alarm 2 in and 1 out, Audio 1 in and 1 out
-IP66 ingress protection

 IPC6622SR-X33-VF
Camera
Sensor1/2.8?, 2.0 megapixel, progressive scan, CMOS
Min. IlluminationColour: 0.001 Lux (F1.5, AGC ON)

0 Lux with IR

Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
WDR120dB
S/N>52dB
Lens
Lens4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
Digital Zoom16
Optical Zoom33
IrisAuto; F1.5 ~ F4.0
Angle of View (H)56.2° ~ 2.6°
Angle of View (V)33.5° ~ 1.4°
Angle of View (O)65.4° ~ 3.0°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
4.572.9(239.3ft)29.2(95.7ft)14.6(47.9ft)7.3(23.9ft)
148.52187.9 (7178.3ft)875.2(2871.3ft)437.6(1435.7ft)218.8(717.8ft)
Illuminator
IR RangeUp to 150m (492 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 2MP(1920*1080),Max 60fps;

Sub Stream: 2MP (1920*1080), Max 60fps;

Third Stream: D1 (720*576), Max 60fps;

Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
ROISupport
Video streamTriple streams
OSDUp to 8 OSDs
Privacy Mask24 areas, up to 4 areas per scene
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart intrusion PreventionSupport false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection;
Face captureSupport
Events
Basic DetectionMotion detection, Audio detection, Tampering Alarm
Auto TrackingSupport
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U,G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation

EZLive

EZView

Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Pan & Tilt
Pan Range360° (endless)
Pan Speed0.1°/s ~ 200°/s
Preset speed: 300°/s
Tilt Range–15° ~ 90° (auto reverse)
Tilt Speed0.1° ~ 200°/s
Preset speed: 240°/s
Number of Presets1024
PatrolPreset patrol, route patrol, recorded patrol
Patrol Stay Time15s~1800s
Preset Image FreezeSupport
Home PositionSupport
Interface
Audio I/O1/1
Alarm I/O2/1
Serial Port1 RS485
Built-in MicN/A
Built-in SpeakerN/A
WIFIN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC
Certification
EMCFCC Part 15

EN 55032:2015

EN 55024:2010

EN 61000-3-2:2014

EN 61000-3-3-2013

SafetyIEC 62368-1

EN 62368-1

UL 60950-1

EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
ProtectionIngression protection: IP66 (IEC 60529-2013)
General


Power



AC 24V±25%, DC 24V±25%, PoE (PSE Required)
Power consumption: Max 41W
Power InterfaceWires with cold-pressed terminal
Dimensions (Ø x H)Ø227 x 384.8mm (Ø8.9” x 15.1”)
Weight5.39kg(11.88lb)
Working Environment-40°C ~65°C (-40°F ~ 149°F)??95%RH
Storage Environment-40°C ~70°C (-40°F ~ 158°F)??95%RH
Surge protection6KV
Vandal ResistantN/A
Ingress ProtectionIP66
Reset ButtonSupport
