Data Sheet

Product Code:

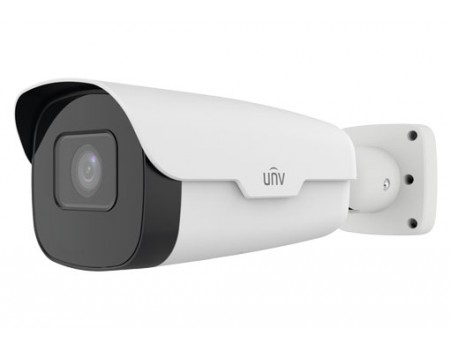

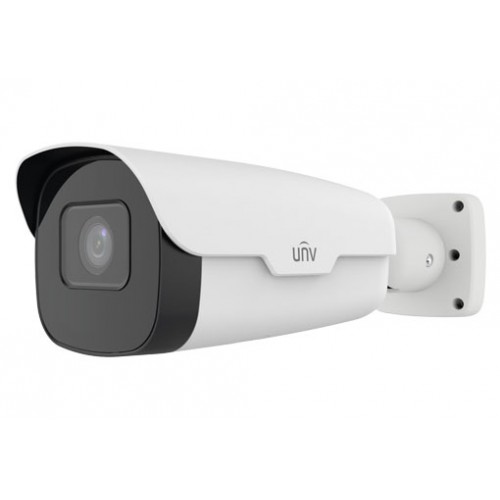

IPC264SA-DZK

Summary:

4MP, 2688x1520, @30fps, Ultra265, 120dB WDR, IR, up to 50m (164ft), Audio, Alarm, MicroSD slot, IP67, IK10, 2.8-12mm Lens, Motorized VF, DC12V

Optics

* 1/1.8", Powered by lighthunter

* SmartIR, up to 50m (164 ft) IR distance

* Up to 120 dB Optical WDR (Wide Dynamic Range)

* Adaptive fogging

Compression

* Ultra 265, H.265, H.264, MJPEG

* Triple streams

* 2688*1520@30fps in the main stream

* ROI (Region of Interest)

* 9:16 corridor mode

Network

* ONVIF Conformance

Structure

* DC12V or AC24V or PoE power supply

* Wide voltage range of ±25% in AC, -10%~+25% in DC

* Micro SD, up to 256 GB

* Alarm 2 in and 1 out, Audio 1 in and 1 out

* IP67 ingress protection

* IK10 vandal resistant

Camera
Sensor1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens
IrisAuto aperture
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.8-1242-18016.8-728.4-364.2-18
Angle of View (H)35.6°~107.9°
Angle of View (V)20.4°~75.4°
Angle of View (O)43.8°~140.3°
ShutterAuto/Manual, 1 ~ 1/100000s
Min. IlluminationColour:0.0005lux (F1.2, AGC ON)
0 lux with IR
WDR120dB
Day/NightIR-cut filter with auto switch (ICR)
Video
Video CompressionUltra 265,H.265,H.264,MJPEG
Frame Rate4MP(2688*1520),Max 30fps
9:16 corridor modeSupported
ROISupported
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskSupported
Smart
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U,G.711A
Voice intercomSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network
ProtocolsL2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,DNS,DDNS,NTP,FTP,UPnP,HTTP,SNMP,SIP,802.1X,HTTPS
Compatible IntegrationONVIF,IMOS
Interface
Audio I/OAudio cable
1/1
Alarm I/O2/1
Network1 x RJ45 10M/100M Base-TX Ethernet
Serial Port1 RS485
General

Power

AC24V±25%, DC12V(-10%~+25%), PoE(IEEE802.3at)
Power consumption: 13.3W
Support reverse polarity protection, Overvoltage and overcurrent protection
Dimensions (Ø x H)?306.4x104.1x98.4mm(?12.1’’x4.1’’x3.9’’)
Weight1.65kg(3.64lb?
Working Environment-30?~60?(-22°F ~ 140°F),?95%RH
IR50m (164ft)
Vandal ResistantIK10
Ingress ProtectionIP67
