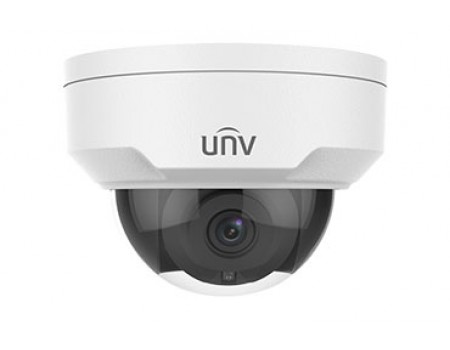

IPC324ER3-DVPF28
IPC324ER3-DVPF36IPC324ER3-DVPF60
Camera
Sensor1/3",progressive scan,4.0 megapixel, CMOS
Lens2.8mm@F2.03.6mm@F2.06.0mm@F2.0
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm6325.212.66.3
3.6mm8132.416.28.1
6 mm135542713.5
Angle of View (H)104.4°86.4°49.9°
Angle of View (V)67°53.2°32.9°
Angle of View (O)135.7°112.3°61.4°
AdjustmentanglePan: 0°~360°Tilt: 0°~90°Rotate:0°~360°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.03 Lux (F2.0, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>55 dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264,MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:4MP (2592×1520): Max. 20 fps?4MP (2560×1440): Max. 25 fps?3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
Recognition:Face detection?Audio detection
Intelligent Identification Defocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS
Compatible IntegrationONVIF(Profile S, Profile G), API
Interface
Audio I/OInput: impedance 35 k?; amplitude 2 V [p-p]
Output: impedance 600 ?; amplitude 2 V [p-p]
Alarm I/O1/ 1
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (Ø x H)?108.5 x 81 mm (Ø4.28” x 3.2”)
Weight0.45 kg (0.99 lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
