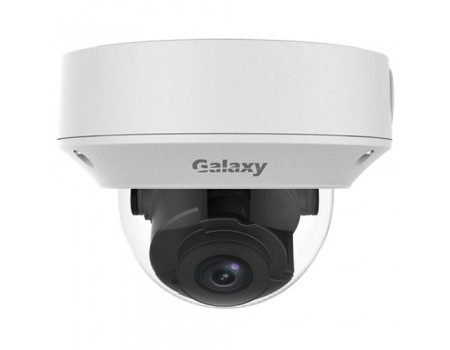

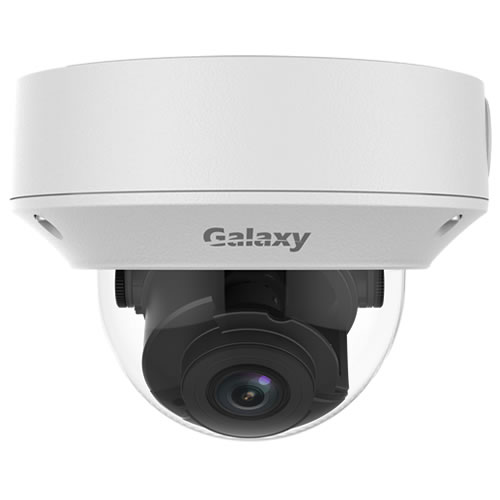

Data Sheet

Product Code:

GX784FN-4K

Summary:

8MP, 3840x2160@15fps, 0.003 Lux, 120dB WDR, Ultra265, Triple Streams, Day&Night(ICR), IR up to 98ft (30m), MicroSD Slot, Smart Function, Audio, Alarm, IP67, IK10, 2.8~12mm Motorized VF Lens, DC12V, PoE

  • Day/night functionality
  • SmartIR, up to 30m (98 ft) IR distance
  • Up to 120 dB OpticalWDR(Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265, H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode
  • ONVIF Conformance
  • Support PoE power supply
  • Built-in PoE splitter that outputs DC 12V
  • Wide temperature range: -40°C to 60°C (-40°F to 140°F)
  • Wide voltage range of ±25%
  • IK10 vandal resistant
  • IP67

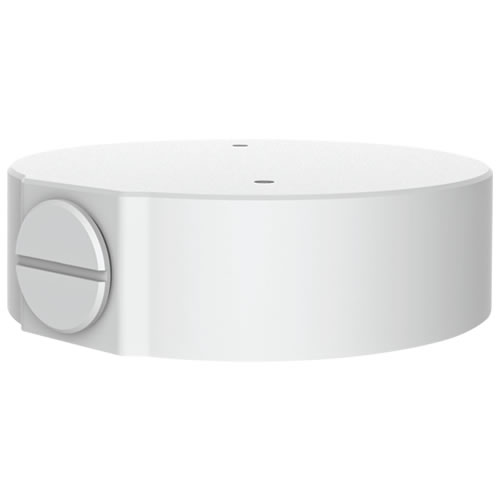

Junction Box

GX-BK-JB84X

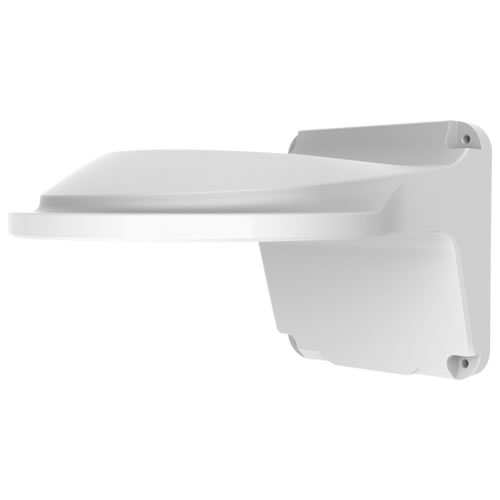

Wall Mount

GX-BK-WM04D



Camera
Sensor 1/2", progressive scan,8.0megapixel, CMOS
Lens 2.8~12mm, AF automatic focusing and motorized zoom lens
DORI Distance

Lens: 2.8mm, Detect(m): 63, Observe(m): 25.2, Recognize(m): 12.6, Identify(m): 6.3
Lens: 12mm, Detect(m): 270, Observe(m): 108, Recognize(m): 54, Identify(m): 27

Angle of View (H) 114.8° ~ 47.3°
Angle of View (V) 75.3°~20.4°
Angle of View (O) 141.2°~55.8°
Adjustmentangle Pan: 0°~360°
Tilt: 0°~90°
Rotate:0°~360°
Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.003 Lux (F1.5, AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
S/N >52 dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264,MJPEG
Frame Rate Main Stream: 8MP (3840*2160): Max. 15 fps;5MP(2592*1944): Max. 30fps; 5MP(2944*1656): Max. 30fps; 4MP(2560*1440): Max. 30fps;2MP (1920*1080): Max. 30fps
Sub Stream: 2MP (1920*1080): Max. 30fps
Third Stream: D1 (720*576): Max. 30 fps
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition: Face detection?Audio detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S, Profile G), API
Interface
Audio I/O Input: impedance 35 k?; amplitude 2 V [p-p]
Output: impedance 600 ?; amplitude 2 V [p-p]
Alarm I/O 1 / 1
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75 ?; amplitude 1 V [p-p]
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 8W
Dimensions (L × W × H) ?148 x 111.3 mm (Ø5.8” x 4.4”)
Weight 0.75 kg (1.7 lb)
Working Environment -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Reset Button Supported
Ingress Protection IP67
Vandal Resistant IK10
