Data Sheet

Product Code:

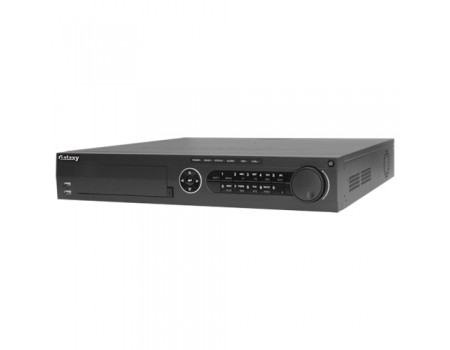

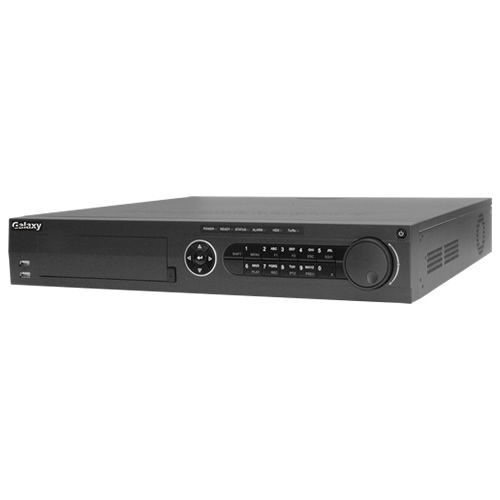

NVR6432-P16

Summary:

32CH, Up to 5MP, 1080P, 16xPOE, H.264, Audio, Alarm 16in/1out, Embedded Linux, Network, HDMI, OSD, Privacy, Motion, 4xSATA up to 16TB, 2xUSB2.0, AC 100~240V, 1.5U Case, 3rd Party IP Cameras support, Multiple network monitoring

  • Digital zoom in live view and playback mode
  • Up to 16ch synchronous playback at 4CIF resolution.
  • 16 independent PoE network interfaces
  • Support up to 5MP resolution IP camera
  • Third-party network cameras supported
  • HDMI and VGA output at up to 1920x1080P resolution
  • HDD quota and group management

Model NVR6432-P16
Main Processor --
Operating System Embedded Linux
System Resources Pentaplex function: live, recording, playback, backup & remote access
Control Mode Front panel, USB mouse, Network
IP Camera Input 32 channel
IP Camera Supported List ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY and Vivotek and ZAVIO
Video Output VGA, HDMI, up to 1080P; 1 CVBS
Voice Intercom 1-ch, BNC (2.0 Vp-p, 1kohm) ; 2-ch, BNC(Linear Electrical Level, 600ohm)
Display Split 1/4/9/16
Resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Tour Display --
OSD Camera title, Time, Date
Privacy Masking Support
Compression H.264
Recording Resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Max Encoding Speed --
Recording Bit Rate 100Mbps/200Mbps
Recording Quality --
Recording Mode --
Recording Priority --
Recording Interval --
Trigger Events full screen monitoring, audio alarm, notifying surveillance center, sending email and alarm output
Motion Detection Support
Video Loss & Camera Blank Support
Alarm Input 16 channel
Relay Output 4 channel
Playback Channel 16-ch@4CIF, 12-ch@720P, 6-ch@1080P
Search Mode Searching and playing back record files by channel number, recording type, start time, end time, etc
Playback Function Supports pause, play reverse, speed up, speed down, skip forward, and skip backward when playback, and locating by dragging the mouse
Backup Mode USB / Network Download
Ethernet 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface; 16 independent 100 Mbps PoE network interfaces
Network Function TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and iSCSI
Max Remote Users --
Remote Operation Monitor, PTZ control, Playback, System setting, File download, Log information
Hard Disk 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
eSATA 1 eSATA interface
HDD Management quota and group management
USB Interface 2 x USB 2.0 + 1 x USB 3.0
RS485 1 RS485 serial interface;
RS232 1 RS232 serial interface;
Power Supply 100 ~ 240VAC, 6.3A, 50 ~ 60Hz
Power Consumption
Working Environment -10 °C ~ +55 °C (14°F ~ 131°F)
Dimension 445 x 390 x70 mm ( 17.5"x 15.3" x 2.8")
Weight
