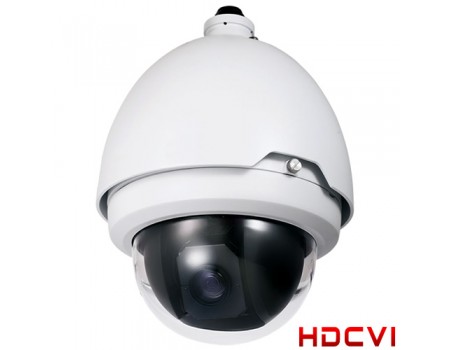

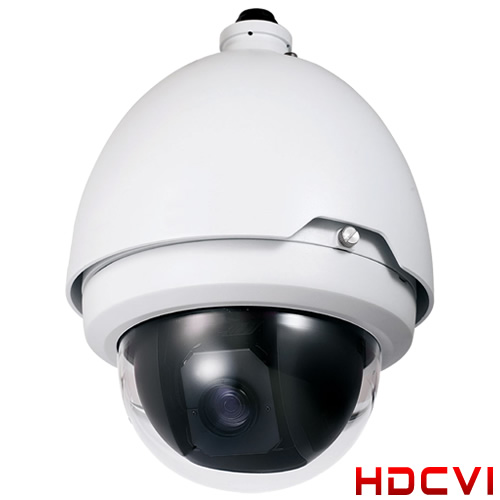

Galaxy 720P HD-CVI 20X Outdoor PTZ Camera
Data Sheet
Product Code:
Product Code:
SD63120I-HC
Summary:HD-CVI, 720P, 1/3" Exmor CMOS, 1280x720@60fps, 0.05Lux Color, DWDR, 2D/3D NR, Privacy, Audio, RS485, Alarm, Day & Night, IP66, Up to 500 meters w/Coax Cable, 4.7~94mm (20x Optiocal Zoom) Lens, AC24V
- HD-CVI, 720P
- 1/3" Exmor CMOS
- 1280x720@60fps
- 0.05Lux Color
- DWDR, 2D/3D NR, Privacy, Audio, RS485, Alarm
- Day & Night, IP66
- Up to 500 meters w/Coax Cable
- 4.7~94mm (20x Optiocal Zoom) Lens
- AC24V
| Model | SD63120I-HC |
| Pickup Device | 1/3" Exmor CMOS |
| Pixels | 1280x960 |
| Video Frame Rate | 1280x720@60fps |
| Min. illumination | 0.05Lux Color |
| White Balance | - |
| S/N Ratio | - |
| Electronic Shutter | - |
| Day & Night | Yes |
| DWDR | Yes |
| 2D/3D Noise Reduction | Yes |
| Privacy masking | Up to 24 areas |
| Digital Zoom | 16x |
| Audio | 1CH |
| RS485 | 1x |
| Alarm | 2in/ 1out |
| Sync. System | - |
| Video Output | Compliant HDCVI Standard |
| HDCVI distance | Up to 500 meters lossless transmission with 75-3 coax |
| Infrared Lamp | - |
| IR Distance | - |
| Water Resistance | IP66 |
| Protocol | Pelco-P/D Auto Recognition |
| Operating Temperature | -40°C ~ 50°C |
| Lens | 4.7~94mm (20x Optiocal Zoom) Lens |
| Power Supply | AC 24V/2.2A |
| Others | Heater Build in, Support - 40 Degree, IK10 Vandal Proof Dome |
Optional
| SED-BK-PFB301C | |
| SED-BK-PFB300C | |
| SED-BK-PFA151 |
